       # HYUNDAI ELECTRONICS, INC.

          SUPER 486/33E (CORPORATE SERIES)

          Processor        80486DX
          Processor Speed  33MHz
          Chip Set         AMI
          Max. Onboard     32MB
          DRAM
          Cache            128KB
          BIOS             AMI
          Dimensions       330mm x 218mm
          I/O Options      AMI proprietary memory module, bus mouse,
                           floppy drive interface, 32-bit external
                           memory card slot
          NPU Options      4167

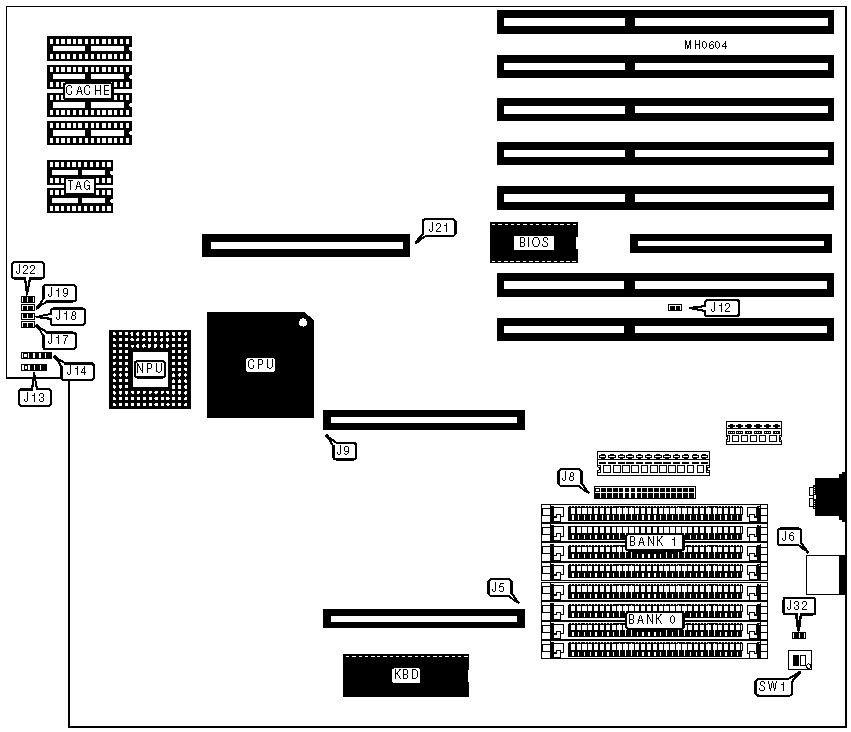

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose            | Location | Purpose         | Location |
          |--------------------+----------+-----------------+----------|
          | AMI proprietary    | J5 & J9  | Reset switch    |   J17    |
          | memory module      |          |                 |          |
          |--------------------+----------+-----------------+----------|
          | Bus mouse port     |    J6    | Turbo switch    |   J18    |
          |--------------------+----------+-----------------+----------|
          | Floppy drive       |    J8    | Turbo LED       |   J19    |
          | interface          |          |                 |          |
          |--------------------+----------+-----------------+----------|
          | Speaker            |   J13    | 32-bit external |   J21    |
          |                    |          | memory card     |          |
          |--------------------+----------+-----------------+----------|
          | Power LED &        |   J14    | Diagnostic LED  |   J22    |
          | keylock            |          |                 |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |            Function             | Jumper/Switch | Position |
          |---------------------------------+---------------+----------|
          | » | Factory configured - do not |      J12      |   Open   |
          |   | alter                       |               |          |
          |---+-----------------------------+---------------+----------|
          | » | Factory configured - do not |      J32      |   Open   |
          |   | alter                       |               |          |
          |---+-----------------------------+---------------+----------|
          | » | Factory configured - do not |     SW1/1     |   N/A    |
          |   | alter                       |               |          |
          |---+-----------------------------+---------------+----------|
          | » | Monitor type select         |     SW1/2     |   Off    |
          |   | monochrome                  |               |          |
          |---+-----------------------------+---------------+----------|
          |   | Monitor type select color   |     SW1/2     |    On    |
          |------------------------------------------------------------|
          | Note:The location of J32 is unidentified.                  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       4MB        |     (4) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       8MB        |     (4) 1M x 9     |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       16MB       |     (4) 4M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       32MB       |     (4) 4M x 9     |     (4) 4M x 9     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |        TAG         |
          |------------------+--------------------+--------------------|
          |      128KB       |    (4) 32K x 8     |    (2) 16K x 4     |
          +------------------------------------------------------------+
