       # HAUPPAUGE COMPUTER WORKS, INC.

          386 DP COMPAQ DESKPRO

          Processor             80386DX
          Processor Speed       25/33MHz
          Chip Set              C & T
          Max. Onboard DRAM     4MB
          Cache                 None
          BIOS                  Award
          Dimensions            330mm x 218mm
          I/O Options           32-bit external memory card slot
          NPU Options           80387

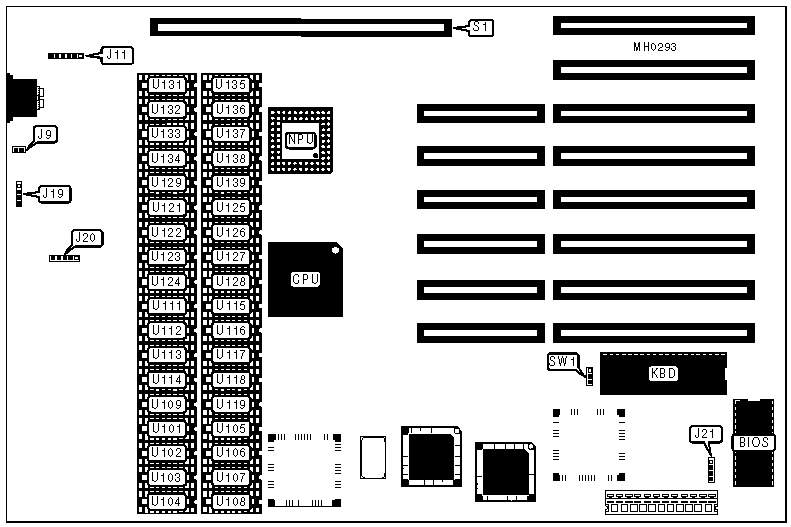

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose      |   Location   | Purpose           | Location |
          |--------------+--------------+-------------------+----------|
          | Reset switch |      J9      | Power LED &       |   J20    |
          |              |              | keylock           |          |
          |--------------+--------------+-------------------+----------|
          | Turbo LED    | J11 pins 1 & | External battery  |   J21    |
          |              |      2       |                   |          |
          |--------------+--------------+-------------------+----------|
          | Turbo switch | J11 pins 5 & | 32-bit external   |    S1    |
          |              |      6       | memory card       |          |
          |--------------+--------------+-------------------+----------|
          | Speaker      |     J19      |                   |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              | Jumper |   Position   |
          |------------------------------------+--------+--------------|
          | ยป | Monitor type select color      |  SW1   |  pins 2 & 3  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          |   | Monitor type select monochrome |  SW1   |     Open     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size |    DIP     |                Location                |
          |------+------------+----------------------------------------|
          | 1MB  | (9) 44256  |              U101 - U109               |
          |------+------------+----------------------------------------|
          | 2MB  | (18) 44256 |       U101 - U109 & U111 - U119        |
          |------+------------+----------------------------------------|
          | 3MB  | (27) 44256 |   U101 - U109 & U111 - U119 & U121 -   |
          |      |            |                  U129                  |
          |------+------------+----------------------------------------|
          | 4MB  | (36) 44256 |   U101 - U109 & U111 - U119 & U121 -   |
          |      |            |           U129 & U131 - U139           |
          +------------------------------------------------------------+
