       # HAWK COMPUTERS

          386 SX

          Processor                         80386SX
          Processor Speed                   20/25MHz
          Chip Set                          OPTI
          Max. Onboard DRAM                 32MB
          Cache                             16/32/64KB
          BIOS                              AMI
          Dimensions                        304.8mm x 215.8mm
          I/O Options                       None
          NPU Options                       80387SX

 (IMG) IMG 1


          +------------------------------------------------------------+

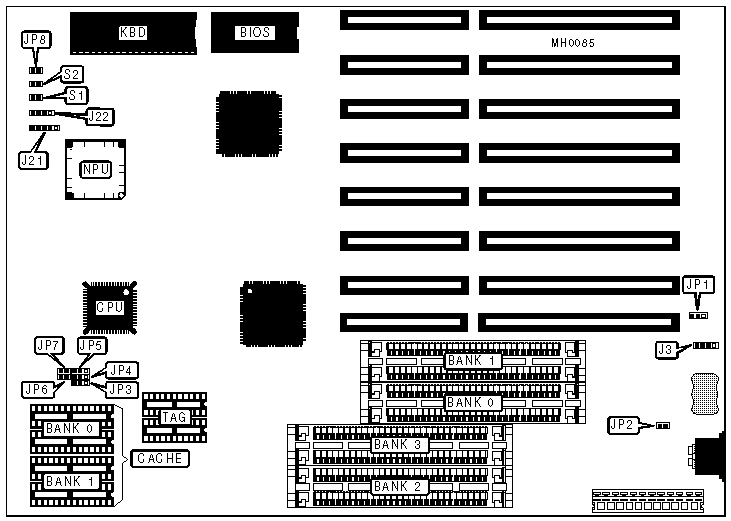

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose             | Location | Purpose        | Location |
          |---------------------+----------+----------------+----------|
          | External battery    |    J3    | Turbo LED      |   JP8    |
          |---------------------+----------+----------------+----------|
          | Power LED & keylock |   J21    | Reset switch   |    S1    |
          |---------------------+----------+----------------+----------|
          | Speaker             |   J22    | Turbo switch   |    S2    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP1   | pins 2 & 3 |
          |   | alter                            |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Monitor type select color        |  JP2   |   Closed   |
          |---+----------------------------------+--------+------------|
          |   | Monitor type select monochrome   |  JP2   |    Open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size |   Bank 0    |   Bank 1    |   Bank 2   |   Bank 3   |
          |------+-------------+-------------+------------+------------|
          | 1MB  | (2) 256K x  | (2) 256K x  |    NONE    |    NONE    |
          |      |      9      |      9      |            |            |
          |------+-------------+-------------+------------+------------|
          | 2MB  | (2) 256K x  | (2) 256K x  | (2) 256K x | (2) 256K x |
          |      |      9      |      9      |     9      |     9      |
          |------+-------------+-------------+------------+------------|
          | 4MB  | (2) 1M x 9  | (2) 1M x 9  |    NONE    |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 6MB  | (2) 1M x 9  | (2) 1M x 9  | (2) 1M x 9 |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 8MB  | (2) 1M x 9  | (2) 1M x 9  | (2) 1M x 9 | (2) 1M x 9 |
          |------+-------------+-------------+------------+------------|
          | 16MB | (2) 4M x 9  | (2) 4M x 9  |    NONE    |    NONE    |
          |------+-------------+-------------+------------+------------|
          | 32MB | (2) 4M x 9  | (2) 4M x 9  | (2) 4M x 9 | (2) 4M x 9 |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |  Size  |     Bank 0      |     Bank 1     |      TAG       |
          |--------+-----------------+----------------+----------------|
          |  16KB  |   (2) 8K x 8    |      NONE      |   (2) 4K x 4   |
          |--------+-----------------+----------------+----------------|
          |  32KB  |   (2) 8K x 8    |   (2) 8K x 8   |  (2) 16K x 4   |
          |--------+-----------------+----------------+----------------|
          |  64KB  |   (2) 32K x 8   |      NONE      |  (2) 16K x 8   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 CACHE JUMPER CONFIGURATION                 |
          |------------------------------------------------------------|
          | Size |    JP3    |    JP4    |    JP5    |  JP6   |  JP7   |
          |------+-----------+-----------+-----------+--------+--------|
          | 16KB | pins 1 &  | pins 1 &  | pins 1 &  | Closed |  Open  |
          |      | 2 closed  | 2 closed  | 2 closed  |        |        |
          |------+-----------+-----------+-----------+--------+--------|
          | 32KB | pins 1 &  | pins 1 &  | pins 2 &  |  Open  | Closed |
          |      | 2 closed  | 2 closed  | 3 closed  |        |        |
          |------+-----------+-----------+-----------+--------+--------|
          | 64KB | pins 2 &  | pins 2 &  | pins 2 &  | Closed |  Open  |
          |      | 3 closed  | 3 closed  | 3 closed  |        |        |
          +------------------------------------------------------------+
