# DTK COMPUTER, INC.
PRM-0032I (VER. 1.00)
Processor Pentium Pro
Processor Speed 180/200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 384MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS AMI
Dimensions 330mm x 220mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2), SCSI
interface, Wide SCSI interface, parallel
port, PS/2 mouse port, serial ports (2), IR
connector, USB connectors (2), VRM connectors
(2)
NPU Options None

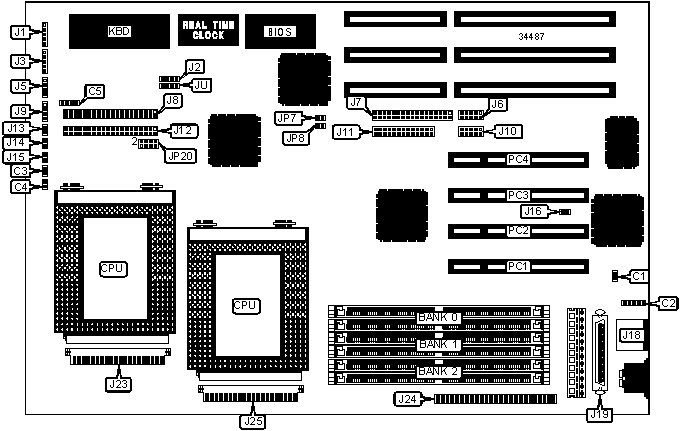

(IMG) IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| IR connector | J1 | Reset switch | J13 |
|-------------------+----------+------------------+----------|
| USB connector | J2 | Turbo LED | J14 |
|-------------------+----------+------------------+----------|
| Power LED & | J3 | Green PC | J15 |
| keylock | | connector | |
|-------------------+----------+------------------+----------|
| Speaker | J5 | SCSI interface | J16 |
| | | LED | |
|-------------------+----------+------------------+----------|
| Serial port 1 | J6 | PS/2 mouse port | J18 |
|-------------------+----------+------------------+----------|
| Floppy drive | J7 | Wide SCSI | J19 |
| interface | | interface | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | J8 | VRM connector | J23 |
|-------------------+----------+------------------+----------|
| IDE interface LED | J9 | SCSI interface | J24 |
|-------------------+----------+------------------+----------|
| Serial port 2 | J10 | VRM connector | J25 |
|-------------------+----------+------------------+----------|
| Parallel port | J11 | USB connector | JU |
|-------------------+----------+------------------+----------|
| IDE interface 1 | J12 | 32-bit PCI slots | PC1 – |
| | | | PC4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | C1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | C2 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | C3 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | C4 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | C5 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 2MB | (2) 256K x 36 | None | None |
|------------+---------------+---------------+---------------|
| 4MB | (2) 256K x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 4MB | (2) 512K x 36 | None | None |
|------------+---------------+---------------+---------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 | None |
|------------+---------------+---------------+---------------|
| 10MB | (2) 1M x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 16MB | (2) 2M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 18MB | (2) 2M x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 20MB | (2) 2M x 36 | (2) 512K x 36 | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 26MB | (2) 2M x 36 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 28MB | (2) 2M x 36 | (2) 1M x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 | None |
|------------+---------------+---------------+---------------|
| 34MB | (2) 4M x 36 | (2) 256K x 36 | None |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 | None |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 512K x 36 | (2) 512K x 36 |
|------------+---------------+---------------+---------------|
| 42MB | (2) 4M x 36 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 | None |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|---------+----------------+----------------+----------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|---------+----------------+----------------+----------------|
| 50MB | (2) 4M x 36 | (2) 2M x 36 | (2) 256K x 36 |
|---------+----------------+----------------+----------------|
| 56MB | (2) 4M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|---------+----------------+----------------+----------------|
| 64MB | (2) 8M x 36 | None | None |
|---------+----------------+----------------+----------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | None |
|---------+----------------+----------------+----------------|
| 74MB | (2) 8M x 36 | (2) 1M x 36 | (2) 256K x 36 |
|---------+----------------+----------------+----------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 | None |
|---------+----------------+----------------+----------------|
| 80MB | (2) 8M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|---------+----------------+----------------+----------------|
| 82MB | (2) 8M x 36 | (2) 2M x 36 | (2) 256K x 36 |
|---------+----------------+----------------+----------------|
| 84MB | (2) 8M x 36 | (2) 2M x 36 | (2) 512K x 36 |
|---------+----------------+----------------+----------------|
| 88MB | (2) 8M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|---------+----------------+----------------+----------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 | None |
|---------+----------------+----------------+----------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|---------+----------------+----------------+----------------|
| 96MB | (2) 8M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|---------+----------------+----------------+----------------|
| 98MB | (2) 8M x 36 | (2) 4M x 36 | (2) 256K x 36 |
|---------+----------------+----------------+----------------|
| 100MB | (2) 8M x 36 | (2) 4M x 36 | (2) 512K x 36 |
|---------+----------------+----------------+----------------|
| 128MB | (2) 8M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|---------+----------------+----------------+----------------|
| 128MB | (2) 16M x 36 | None | None |
|---------+----------------+----------------+----------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | None |
|---------+----------------+----------------+----------------|
| 132MB | (2) 8M x 36 | (2) 8M x 36 | (2) 512K x 36 |
|---------+----------------+----------------+----------------|
| 136MB | (2) 8M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|---------+----------------+----------------+----------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 | None |
|---------+----------------+----------------+----------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 | None |
|---------+----------------+----------------+----------------|
| 144MB | (2) 16M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|---------+----------------+----------------+----------------|
| 152MB | (2) 16M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|---------+----------------+----------------+----------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 | None |
|---------+----------------+----------------+----------------|
| 160MB | (2) 16M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|---------+----------------+----------------+----------------|
| 168MB | (2) 16M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|---------+----------------+----------------+----------------|
| 176MB | (2) 16M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|---------+----------------+----------------+----------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 | None |
|---------+----------------+----------------+----------------|
| 192MB | (2) 16M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|---------+----------------+----------------+----------------|
| 200MB | (2) 16M x 36 | (2) 8M x 36 | (2) 1M x 36 |
|---------+----------------+----------------+----------------|
| 208MB | (2) 16M x 36 | (2) 8M x 36 | (2) 2M x 36 |
|---------+----------------+----------------+----------------|
| 224MB | (2) 16M x 36 | (2) 8M x 36 | (2) 4M x 36 |
|---------+----------------+----------------+----------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 | None |
|---------+----------------+----------------+----------------|
| 256MB | (2) 16M x 36 | (2) 8M x 36 | (2) 8M x 36 |
|---------+----------------+----------------+----------------|
| 264MB | (2) 16M x 36 | (2) 16M x 36 | (2) 1M x 36 |
|---------+----------------+----------------+----------------|
| 272MB | (2) 16M x 36 | (2) 16M x 36 | (2) 2M x 36 |
|---------+----------------+----------------+----------------|
| 288MB | (2) 16M x 36 | (2) 16M x 36 | (2) 4M x 36 |
|---------+----------------+----------------+----------------|
| 320MB | (2) 16M x 36 | (2) 16M x 36 | (2) 8M x 36 |
|---------+----------------+----------------+----------------|
| 384MB | (2) 16M x 36 | (2) 16M x 36 | (2) 16M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x |
| 32 SIMMs. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU | Clock | Multiplier | JP7 | JP8 | JP20 |
| speed | speed | | | | |
|---------+--------+------------+--------+--------+----------|
| 180MHz | 60MHz | 3x | Closed | Open | 1 & 2, 3 |
| | | | | | & 4, 7 & |
| | | | | | 8 |
|---------+--------+------------+--------+--------+----------|
| 200MHz | 66MHz | 3x | Open | Closed | 1 & 2, 3 |
| | | | | | & 4, 7 & |
| | | | | | 8 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
