       # DIAMOND FLOWER, INC.

          386SX-20IN

          Processor         80386SX
          Processor Speed   20MHz
          Chip Set          Intel
          Max. onboard DRAM 8MB
          Cache             None
          BIOS              AMI
          Dimensions        330mm x 218mm
          I/O Options       None
          NPU Options       80387SX

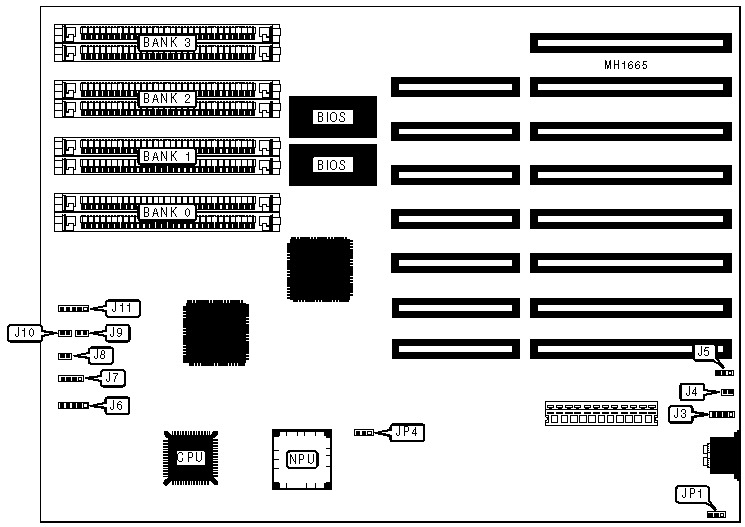

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose           | Location | Purpose          | Location |
          |-------------------+----------+------------------+----------|
          | Keyboard          |    J1    | Speaker          |    J7    |
          | connector         |          |                  |          |
          |-------------------+----------+------------------+----------|
          | External battery  |    J3    | Turbo LED        |    J9    |
          |-------------------+----------+------------------+----------|
          | Turbo switch      | J4 & J8  | Reset switch     |   J10    |
          |-------------------+----------+------------------+----------|
          | Power LED &       |    J6    | Secondary        |   J11    |
          | keylock           |          | keyboard         |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |           Function            | Jumper/Switch |  Position  |
          |-------------------------------+---------------+------------|
          | » | CMOS memory normal        |      J5       | pins 1 & 2 |
          |   | operation (External       |               |   closed   |
          |   | Battery)                  |               |            |
          |---+---------------------------+---------------+------------|
          |   | CMOS memory normal        |      J5       | pins 2 & 3 |
          |   | operation (Internal       |               |   closed   |
          |   | Battery)                  |               |            |
          |---+---------------------------+---------------+------------|
          |   | CMOS memory clear         |      J5       |    Open    |
          |---+---------------------------+---------------+------------|
          | » | Monitor type select       |      JP1      | pins 1 & 2 |
          |   | monochrome                |               |   closed   |
          |---+---------------------------+---------------+------------|
          |   | Monitor type select color |      JP1      | pins 2 & 3 |
          |   |                           |               |   closed   |
          |---+---------------------------+---------------+------------|
          | » | Bus select 0 wait states  |      JP4      | pins 2 & 3 |
          |   |                           |               |   closed   |
          |---+---------------------------+---------------+------------|
          |   | Bus select 1 wait state   |      JP4      | pins 1 & 2 |
          |   |                           |               |   closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size  |   Bank 0    |   Bank 1   |   Bank 2   |   Bank 3   |
          |-------+-------------+------------+------------+------------|
          | 512KB | (2) 256K x  |    NONE    |    NONE    |    NONE    |
          |       |      9      |            |            |            |
          |-------+-------------+------------+------------+------------|
          |  1MB  | (2) 256K x  | (2) 256K x |    NONE    |    NONE    |
          |       |      9      |     9      |            |            |
          |-------+-------------+------------+------------+------------|
          | 1.5MB | (2) 256K x  | (2) 256K x | (2) 256K x |    NONE    |
          |       |      9      |     9      |     9      |            |
          |-------+-------------+------------+------------+------------|
          |  2MB  | (2) 256K x  | (2) 256K x | (2) 256K x | (2) 256K x |
          |       |      9      |     9      |     9      |     9      |
          |-------+-------------+------------+------------+------------|
          |  2MB  | (2) 1M x 9  |    NONE    |    NONE    |    NONE    |
          |-------+-------------+------------+------------+------------|
          |  3MB  | (2) 256K x  | (2) 256K x | (2) 1M x 9 |    NONE    |
          |       |      9      |     9      |            |            |
          |-------+-------------+------------+------------+------------|
          |  4MB  | (2) 1M x 9  | (2) 1M x 9 |    NONE    |    NONE    |
          |-------+-------------+------------+------------+------------|
          | 4.5MB | (2) 1M x 9  | (2) 1M x 9 | (2) 256K x |    NONE    |
          |       |             |            |     9      |            |
          |-------+-------------+------------+------------+------------|
          |  5MB  | (2) 256K x  | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 |
          |       |      9      |     9      |            |            |
          |-------+-------------+------------+------------+------------|
          |  6MB  | (2) 1M x 9  | (2) 1M x 9 | (2) 1M x 9 |    NONE    |
          |-------+-------------+------------+------------+------------|
          |  8MB  | (2) 1M x 9  | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
          |-------+-------------+------------+------------+------------|
          |  8MB  | (2) 4M x 9  |    NONE    |    NONE    |    NONE    |
          +------------------------------------------------------------+
