       # DTK COMPUTER, INC.

          PTM-1000V2, ZeroAT 12

          Processor         80286
          Processor Speed   6/10MHz
          Chip Set          None
          Max. onboard DRAM 1MB
          Cache             None
          BIOS              DTK
          Dimensions        220mm x 218mm
          I/O Options       None
          NPU Options       80287

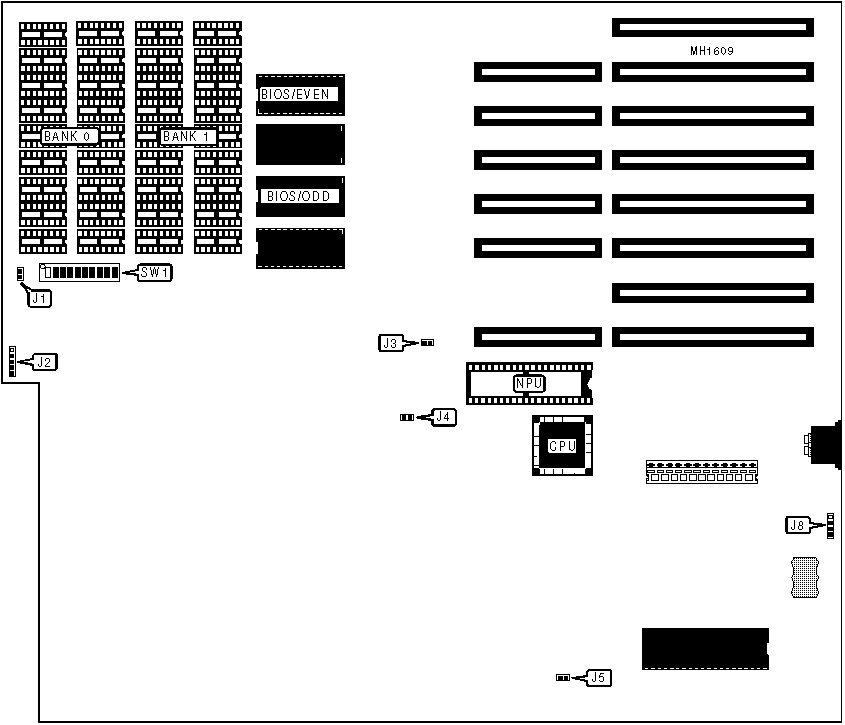

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | Speaker          |    J1    | Turbo LED         |    J4    |
          |------------------+----------+-------------------+----------|
          | Power LED &      |    J2    | Turbo switch      |    J5    |
          | keylock          |          |                   |          |
          |------------------+----------+-------------------+----------|
          | Reset switch     |    J3    | External battery  |    J8    |
          |------------------------------------------------------------|
          | Note:Turbo speed can also be activated by pressing Ctrl    |
          | and Alt simultaneously.                                    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Function                | Switch | Position |
          |----------------------------------------+--------+----------|
          | » | Base memory select 640KB/ext       | SW1/2  |    On    |
          |   | memory = 384KB                     |        |          |
          |---+------------------------------------+--------+----------|
          |   | Base memory select 512KB/ext       | SW1/2  |   Off    |
          |   | memory = 512KB                     |        |          |
          |---+------------------------------------+--------+----------|
          | » | Monitor type select color          | SW1/6  |    On    |
          |---+------------------------------------+--------+----------|
          |   | Monitor type select monochrome     | SW1/6  |   Off    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |     Size     |    Bank 0     |    Bank 1     |    SW1/3    |
          |--------------+---------------+---------------+-------------|
          |    512KB     |  (18) 41256   |     None      |     N/A     |
          |--------------+---------------+---------------+-------------|
          |    640KB     |  (18) 41256   |   (18) 4164   |     On      |
          |--------------+---------------+---------------+-------------|
          |     1MB      |  (18) 41256   |  (18) 41256   |     Off     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               DRAM WAIT STATE CONFIGURATION                |
          |------------------------------------------------------------|
          |    Bank 0     |    Bank 1     |  SW1/1  |  SW1/4  | SW1/5  |
          |---------------+---------------+---------+---------+--------|
          | 0 wait states | 0 wait states |   Off   |   Off   |  Off   |
          |---------------+---------------+---------+---------+--------|
          | 0 wait states | 1 wait state  |   Off   |   Off   |   On   |
          |---------------+---------------+---------+---------+--------|
          | 1 wait state  | 0 wait states |   Off   |   On    |  Off   |
          |---------------+---------------+---------+---------+--------|
          | 1 wait state  | 1 wait state  |   Off   |   On    |   On   |
          |---------------+---------------+---------+---------+--------|
          | 1 wait state  | 1 wait state  |   On    |   N/A   |  N/A   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  BIOS TYPE CONFIGURATION                   |
          |------------------------------------------------------------|
          |   Type    |   SW1/7   |   SW1/8   |   SW1/9   |   SW1/10   |
          |-----------+-----------+-----------+-----------+------------|
          |   27128   |    On     |    On     |    Off    |    Off     |
          |-----------+-----------+-----------+-----------+------------|
          |   27256   |    Off    |    Off    |    On     |     On     |
          +------------------------------------------------------------+
