       # DELL COMPUTER CORPORATION

          System 325

          Processor        80386DX
          Processor Speed  20MHz
          Chip Set         VLSI
          Max. Onboard     8MB
          DRAM
          Cache            32KB (factory configured)
          BIOS             AMI
          Dimensions       353mm x 291mm
          I/O Options      32-bit external memory card slot, parallel
                           port, serial ports (2)
          NPU Options      80387/3167

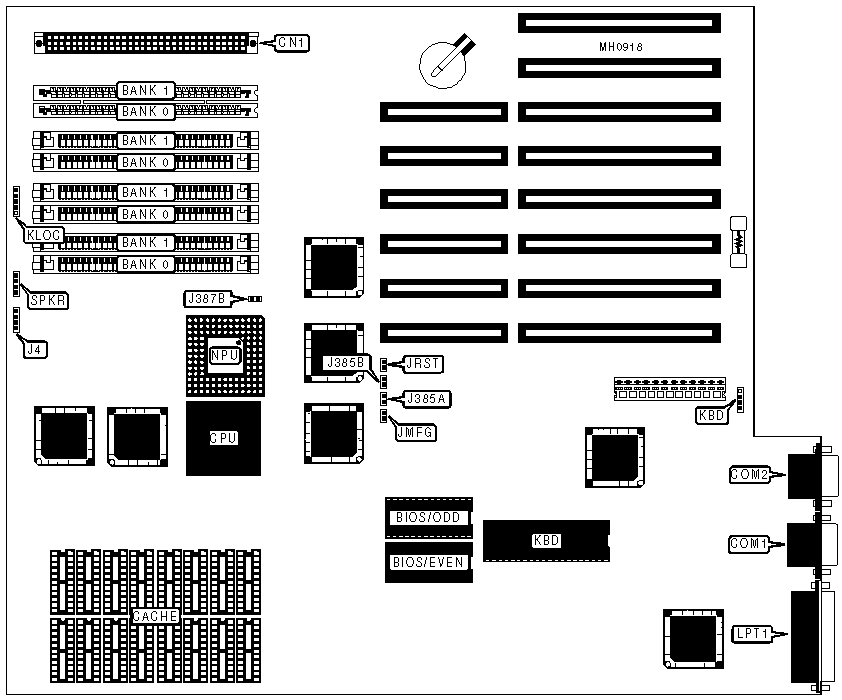

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose             | Location | Purpose        | Location |
          |---------------------+----------+----------------+----------|
          | 32-bit external     |   CN1    | Reset switch   |   JRST   |
          | memory card         |          |                |          |
          |---------------------+----------+----------------+----------|
          | Serial port 1       |   COM1   | Power LED &    |   KLOC   |
          |                     |          | keylock        |          |
          |---------------------+----------+----------------+----------|
          | Serial port 2       |   COM2   | Parallel port  |   LPT1   |
          |---------------------+----------+----------------+----------|
          | Keyboard            |   KBD    | Speaker        |   SPKR   |
          |---------------------+----------+----------------+----------|
          | External battery    |    J4    |                |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Function                | Jumper | Position |
          |----------------------------------------+--------+----------|
          | » | Factory configured - do not alter  | J385A  |   Open   |
          |---+------------------------------------+--------+----------|
          | » | Factory configured - do not alter  | J385B  |   Open   |
          |---+------------------------------------+--------+----------|
          | » | Factory configured - do not alter  | J387B  |   Open   |
          |---+------------------------------------+--------+----------|
          | » | Factory configured - do not alter  |  JMFG  |   Open   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (4) 256K x 9    |        NONE        |
          |------------------+--------------------+--------------------|
          |       2MB        |    (4) 256K x 9    |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       4MB        |     (4) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       8MB        |     (4) 1M x 9     |     (4) 1M x 9     |
          +------------------------------------------------------------+
