       # AT & T, INC.

          AT & T, INC. GLOBALYST 590

          Processor        Pentium
          Processor Speed  60/66MHz
          Chip Set         Unidentified
          Video Chip Set   ATI
          Maximum Onboard  128MB
          Memory
          Maximum Video    2MB
          Memory
          Cache            256KB
          BIOS             Unidentified
          Dimensions       330mm x 218mm
          I/O Options      Floppy drive interface, IDE interfaces (2),
                           parallel port, PS/2 mouse port, serial ports
                           (2), VGA/VESA pass through connector, VGA
                           port, riser slot
          NPU Options      None

 (IMG) IMG 1


          +------------------------------------------------------------+

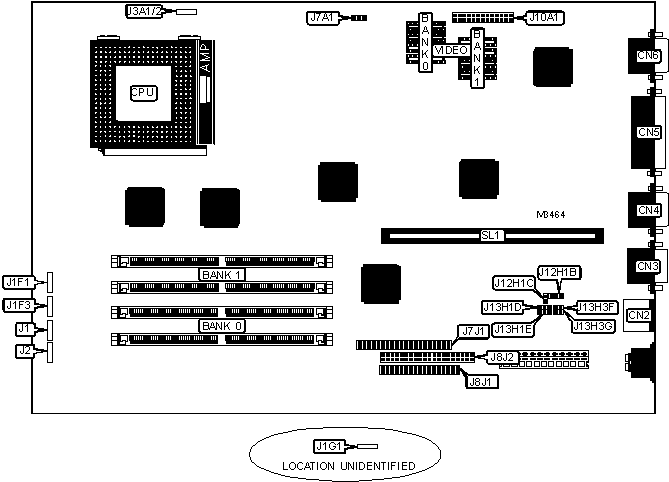

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | PS/2 mouse port  |   CN2    | Power LED &       |   J1F3   |
          |                  |          | keylock           |          |
          |------------------+----------+-------------------+----------|
          | Serial port 2    |   CN3    | IDE interface LED |   J1G1   |
          |------------------+----------+-------------------+----------|
          | Serial port 1    |   CN4    | Chassis fan power |  J3A1/2  |
          |------------------+----------+-------------------+----------|
          | Parallel port    |   CN5    | PCI IDE interface |   J7J1   |
          |------------------+----------+-------------------+----------|
          | VGA port         |   CN6    | Floppy drive      |   J8J1   |
          |                  |          | interface         |          |
          |------------------+----------+-------------------+----------|
          | Front panel LEDs |    J1    | ISA IDE interface |   J8J2   |
          |------------------+----------+-------------------+----------|
          | Front panel LEDs |    J2    | VGA/VESA graphics |  J10A1   |
          |                  |          | pass through      |          |
          |                  |          | connector         |          |
          |------------------+----------+-------------------+----------|
          | Speaker          |   J1F1   | Riser slot        |   SL1    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              | Label  |   Position   |
          |------------------------------------+--------+--------------|
          | » | Flash BIOS normal operation    | J12H1B |  Pins 1 & 2  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          |   | Flash BIOS recovery mode       | J12H1B |  Pins 2 & 3  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          | » | Flash BIOS update disabled     | J12H1C |    Closed    |
          |---+--------------------------------+--------+--------------|
          |   | Flash BIOS update enabled      | J12H1C |     Open     |
          |---+--------------------------------+--------+--------------|
          | » | CMOS memory normal operation   | J13H1D |  Pins 1 & 2  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          |   | CMOS memory clear              | J13H1D |  Pins 2 & 3  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          | » | Password normal operation      | J13H1E |  Pins 1 & 2  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          |   | Password clear                 | J13H1E |  Pins 2 & 3  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          | » | Monitor type select color      | J13H3F |    Closed    |
          |---+--------------------------------+--------+--------------|
          |   | Monitor type select monochrome | J13H3F |     Open     |
          |---+--------------------------------+--------+--------------|
          | » | Setup access enabled           | J13H3G |    Closed    |
          |---+--------------------------------+--------+--------------|
          |   | Setup access disabled          | J13H3G |     Open     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       8MB        |    (2) 1M x 36     |        None        |
          |------------------+--------------------+--------------------|
          |       16MB       |    (2) 2M x 36     |        None        |
          |------------------+--------------------+--------------------|
          |       16MB       |    (2) 1M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       24MB       |    (2) 2M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       32MB       |    (2) 2M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       40MB       |    (2) 4M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       48MB       |    (2) 4M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       64MB       |    (2) 4M x 36     |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |       64MB       |    (2) 8M x 36     |        None        |
          |------------------+--------------------+--------------------|
          |       72MB       |    (2) 8M x 36     |    (2) 1M x 36     |
          |------------------+--------------------+--------------------|
          |       80MB       |    (2) 8M x 36     |    (2) 2M x 36     |
          |------------------+--------------------+--------------------|
          |       96MB       |    (2) 8M x 36     |    (2) 4M x 36     |
          |------------------+--------------------+--------------------|
          |      128MB       |    (2) 8M x 36     |    (2) 8M x 36     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          | Note: The location and chip sizes of the 256KB cache is    |
          | unidentified.                                              |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 VIDEO MEMORY CONFIGURATION                 |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (8) 256K x 4    |        None        |
          |------------------+--------------------+--------------------|
          |       2MB        |    (8) 256K x 4    |    (8) 256K x 4    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CPU SPEED SELECTION                     |
          |------------------------------------------------------------|
          |           Speed            |             J7A1              |
          |----------------------------+-------------------------------|
          |           60MHz            |       Pins 2 & 3 closed       |
          |----------------------------+-------------------------------|
          |           66MHz            |       Pins 1 & 2 closed       |
          +------------------------------------------------------------+
