       # AUVA COMPUTER, INC.

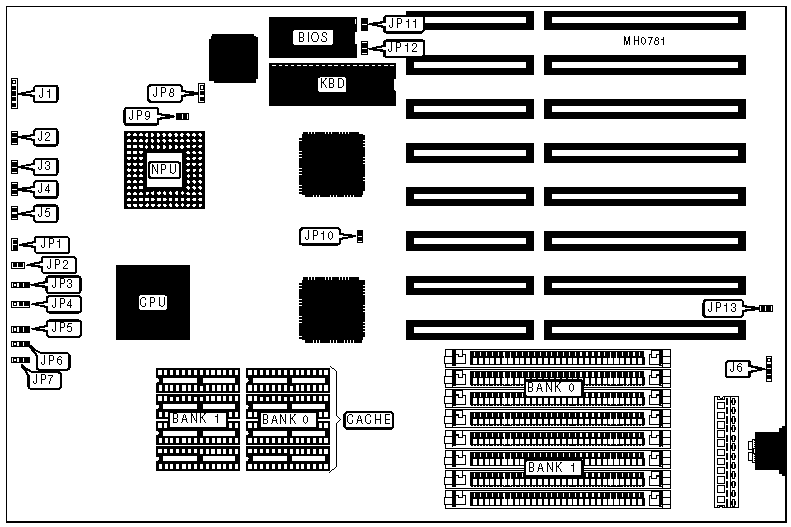

          TAM 33-U0/TAM 33-U1/TAM 40-U0/TAM 40-U1

          Processor             80386DX
          Processor Speed       33/40MHz
          Chip Set              UMC
          Max. Onboard DRAM     32MB
          Cache                 32/64/128/256KB
          BIOS                  AMI
          Dimensions            330mm x 218mm
          I/O Options           None
          NPU Options           80387DX/3167

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose           | Location | Purpose          | Location |
          |-------------------+----------+------------------+----------|
          | Power LED &       |    J1    | Speaker          |    J4    |
          | keylock           |          |                  |          |
          |-------------------+----------+------------------+----------|
          | Turbo switch      |    J2    | Reset switch     |    J5    |
          |-------------------+----------+------------------+----------|
          | Turbo LED         |    J3    | External battery |    J6    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Function                | Jumper | Position |
          |----------------------------------------+--------+----------|
          | » | CPU speed select forced high       |   J2   |  Closed  |
          |---+------------------------------------+--------+----------|
          |   | CPU speed select switchable at     |   J2   |   Open   |
          |   | keyboard                           |        |          |
          |---+------------------------------------+--------+----------|
          | » | Monitor type select color          |  JP11  |  Closed  |
          |---+------------------------------------+--------+----------|
          |   | Monitor type select monochrome     |  JP11  |   Open   |
          |---+------------------------------------+--------+----------|
          | » | Factory configured - do not alter  |  JP12  |   N/A    |
          |---+------------------------------------+--------+----------|
          | » | CMOS memory normal operation       |  JP13  |  Closed  |
          |---+------------------------------------+--------+----------|
          |   | CMOS memory clear                  |  JP13  |   Open   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (4) 256K x 9    |        NONE        |
          |------------------+--------------------+--------------------|
          |       2MB        |    (4) 256K x 9    |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       4MB        |     (4) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       5MB        |    (4) 256K x 9    |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       8MB        |     (4) 1M x 9     |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       16MB       |     (4) 4M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       20MB       |     (4) 1M x 9     |     (4) 4M x 9     |
          |------------------+--------------------+--------------------|
          |       32MB       |     (4) 4M x 9     |     (4) 4M x 9     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       32KB       |     (4) 8K x 8     |        NONE        |
          |------------------+--------------------+--------------------|
          |       64KB       |     (4) 8K x 8     |     (4) 8K x 8     |
          |------------------+--------------------+--------------------|
          |      128KB       |    (4) 32K x 8     |        NONE        |
          |------------------+--------------------+--------------------|
          |      256KB       |    (4) 32K x 8     |    (4) 32K x 8     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 CACHE JUMPER CONFIGURATION                 |
          |------------------------------------------------------------|
          |   Size   |   JP3   |   JP4   |   JP5   |   JP6   |   JP7   |
          |----------+---------+---------+---------+---------+---------|
          |   32KB   |  1 & 2  |  1 & 2  |  1 & 2  |  2 & 3  |   N/A   |
          |----------+---------+---------+---------+---------+---------|
          |   64KB   |  2 & 3  |  1 & 2  |  1 & 2  |  1 & 2  |   N/A   |
          |----------+---------+---------+---------+---------+---------|
          |  128KB   |  2 & 3  |  2 & 3  |  1 & 2  |  2 & 3  |  1 & 2  |
          |----------+---------+---------+---------+---------+---------|
          |  256KB   |  2 & 3  |  2 & 3  |  2 & 3  |  1 & 2  |  2 & 3  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   NPU TYPE CONFIGURATION                   |
          |------------------------------------------------------------|
          |        Type        |        JP1        |       JP10        |
          |--------------------+-------------------+-------------------|
          |      80386DX       |      Closed       |      Closed       |
          |--------------------+-------------------+-------------------|
          |        3167        |       Open        |       Open        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   NPU MODE CONFIGURATION                   |
          |------------------------------------------------------------|
          |        Type        |        JP8         |       JP9        |
          |--------------------+--------------------+------------------|
          |    Synchronous     | pins 1 & 2 closed  |       Open       |
          |--------------------+--------------------+------------------|
          |    Asynchronous    | pins 2 & 3 closed  |      Closed      |
          +------------------------------------------------------------+
