       # ASUS COMPUTER INTERNATIONAL

          80486DX-3350N

          Processor             80486SX/80487SX/80486DX
          Processor Speed       33/50MHz
          Chip Set              Symphony
          Max. Onboard DRAM     32MB
          Cache                 None
          BIOS                  AMI/Award
          Dimensions            220mm x 220mm
          I/O Options           None
          NPU Options           None

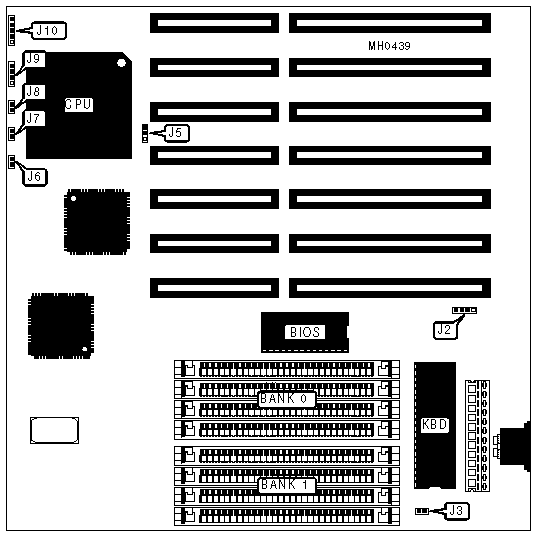

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | External battery |    J2    | Reset switch      |    J8    |
          |------------------+----------+-------------------+----------|
          | Turbo LED        |    J6    | Speaker           |    J9    |
          |------------------+----------+-------------------+----------|
          | Turbo switch     |    J7    | Power LED &       |   J10    |
          |                  |          | keylock           |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper  | Position  |
          |--------------------------------------+---------+-----------|
          | » | Monitor type select color        |   J3    |  Closed   |
          |---+----------------------------------+---------+-----------|
          |   | Monitor type select monochrome   |   J3    |   Open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (4) 256K x 9    |        NONE        |
          |------------------+--------------------+--------------------|
          |       2MB        |    (4) 256K x 9    |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       4MB        |     (4) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       5MB        |     (4) 1M x 9     |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       8MB        |     (4) 1M x 9     |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       16MB       |     (4) 4M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       17MB       |     (4) 4M x 9     |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       20MB       |     (4) 4M x 9     |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       32MB       |     (4) 4M x 9     |     (4) 4M x 9     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   CPU TYPE CONFIGURATION                   |
          |------------------------------------------------------------|
          |            Size            |              J5               |
          |----------------------------+-------------------------------|
          |          80486SX           |       pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |          80487SX           |       pins 2 & 3 closed       |
          |----------------------------+-------------------------------|
          |          80486DX           |       pins 2 & 3 closed       |
          +------------------------------------------------------------+
