       # BEC COMPUTER ENTERPRISES

          C&T 386-20/25

          Processor             80386DX
          Processor Speed       20/25MHz
          Chip Set              C & T
          Max. Onboard DRAM     32MB
          Cache                 None
          BIOS                  AMI
          Dimensions            330mm x 218mm
          I/O Options           32-bit external memory card
          NPU Options           80387/3167

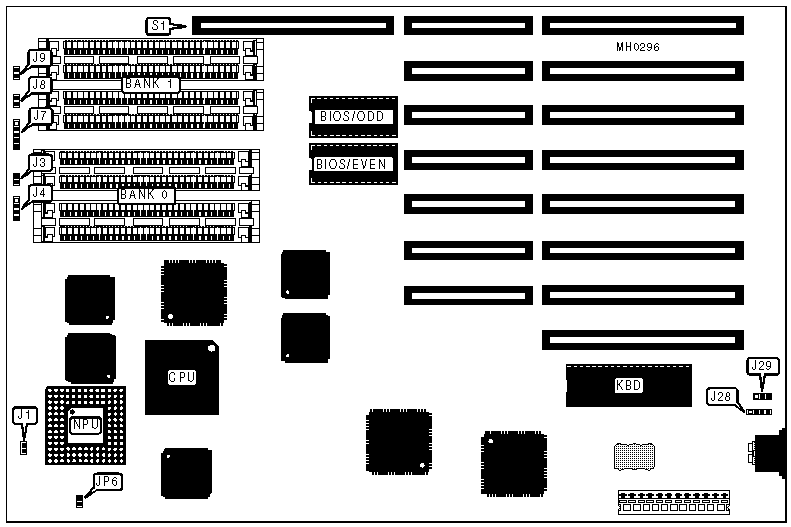

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose       | Location | Purpose              | Location |
          |---------------+----------+----------------------+----------|
          | Turbo switch  |    J3    | Turbo LED            |    J9    |
          |---------------+----------+----------------------+----------|
          | Speaker       |    J4    | External battery     |   J28    |
          |---------------+----------+----------------------+----------|
          | Power LED &   |    J7    | 32-bit external      |    S1    |
          | Keylock       |          | memory card          |          |
          |---------------+----------+----------------------+----------|
          | Reset switch  |    J8    |                      |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              | Jumper |   Position   |
          |------------------------------------+--------+--------------|
          | » | Monitor type select monochrome |   J1   |     Open     |
          |---+--------------------------------+--------+--------------|
          |   | Monitor type select color      |   J1   |    Closed    |
          |---+--------------------------------+--------+--------------|
          | » | CMOS memory normal operation   |  J29   |  pins 1 & 2  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          |   | CMOS memory clear              |  J29   |  pins 2 & 3  |
          |   |                                |        |    closed    |
          |---+--------------------------------+--------+--------------|
          | » | NPU type select 3167 or none   |  JP6   |     Open     |
          |---+--------------------------------+--------+--------------|
          |   | NPU type select 80387          |  JP6   |    Closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (4) 256K x 9    |        NONE        |
          |------------------+--------------------+--------------------|
          |       2MB        |    (4) 256K x 9    |    (4) 256K x 9    |
          |------------------+--------------------+--------------------|
          |       4MB        |     (4) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       8MB        |     (4) 1M x 9     |     (4) 1M x 9     |
          |------------------+--------------------+--------------------|
          |       16MB       |     (4) 4M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       32MB       |     (4) 4M x 9     |     (4) 4M x 9     |
          +------------------------------------------------------------+
