       # UNIDENTIFIED

          JAZZ 16

          Card Type   Sound Card
          Chip Set    Yamaha
          I/O Options Line in, microphone in, speaker/headphone out,
                      game/MIDI port, CD-ROM connector, Audio-in-CD-ROM
          Data Bus    16-bit ISA
          Card Size   Full-length, full-height card

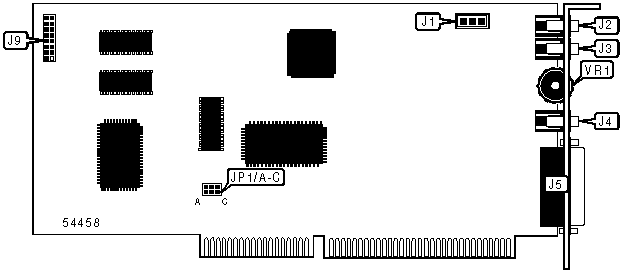

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function       | Label |       Function       | Label |
          |---------------------+-------+----------------------+-------|
          | Audio-in-CD-ROM     |  J1   | Game/M|DI port       |  J5   |
          |---------------------+-------+----------------------+-------|
          | Line in             |  J2   | CD-ROM connector     |  J9   |
          |---------------------+-------+----------------------+-------|
          | Microphone in       |  J3   | Volume control       |  VR1  |
          |---------------------+-------+----------------------+-------|
          | Speaker out         |  J4   |                      |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    INTERRUPT SELECTION                     |
          |------------------------------------------------------------|
          |    IRQ     |     JP1/A     |     JP1/B     |     JP1/C     |
          |------------+---------------+---------------+---------------|
          |     11     |    Closed     |     Open      |     Open      |
          |------------+---------------+---------------+---------------|
          |    »12     |     Open      |    Closed     |     Open      |
          |------------+---------------+---------------+---------------|
          |     15     |     Open      |     Open      |    Closed     |
          +------------------------------------------------------------+
