       # TMI MULTIMEDIA, INC.

          GOLD MASTER GM 32LX

          Card Type   Sound card
          Chip Set    Unidentified
          I/O Options Game/MIDI port, IDE interface (4), CD Audio in
                      (4), Microphone, Line in, Line out, PC speaker
                      connector
          Data Bus    16-bit ISA
          Card Size   Three-quarter length, full-height card

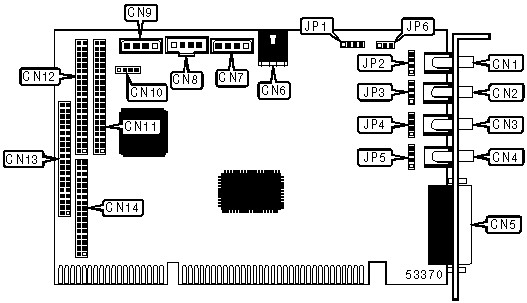

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |     Function      | Label |        Function        | Label |
          |-------------------+-------+------------------------+-------|
          | Microphone jack   |  CN1  | Audio in CD-ROM        |  CN8  |
          |-------------------+-------+------------------------+-------|
          | Line in           |  CN2  | Audio in CD-ROM        |  CN9  |
          |-------------------+-------+------------------------+-------|
          | Line out          |  CN3  | PC Speaker connector   | CN10  |
          |-------------------+-------+------------------------+-------|
          | 3D - Speaker/Line |  CN4  | IDE interface          | CN11  |
          | out               |       | (Panasonic)            |       |
          |-------------------+-------+------------------------+-------|
          | Game/MIDI port    |  CN5  | IDE interface          | CN12  |
          |                   |       | (Mitsumi)              |       |
          |-------------------+-------+------------------------+-------|
          | Audio in CD-ROM   |  CN6  | IDE interface (IDE)    | CN13  |
          |-------------------+-------+------------------------+-------|
          | Audio in CD-ROM   |  CN7  | IDE interface (Sony)   | CN14  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     MICROPHONE SELECT                      |
          |------------------------------------------------------------|
          |      Microphone type       | JP1/pin 1 & 2 | JP1/pin 3 & 4 |
          |----------------------------+---------------+---------------|
          | Capacity type              |     Open      |     Open      |
          |----------------------------+---------------+---------------|
          | Magnetic type              |    Closed     |    Closed     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  MICROPHONE INPUT SELECT                   |
          |------------------------------------------------------------|
          |                 Type                  |        JP6         |
          |---------------------------------------+--------------------|
          | Stereo input                          | Pins 2 & 3 closed  |
          |---------------------------------------+--------------------|
          | Mono input                            | Pins 1 & 2 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function               | Label |   Position   |
          |-------------------------------------+-------+--------------|
          | Factory configured - do not alter   |  JP2  | Unidentified |
          |-------------------------------------+-------+--------------|
          | Factory configured - do not alter   |  JP3  | Unidentified |
          |-------------------------------------+-------+--------------|
          | Factory configured - do not alter   |  JP4  | Unidentified |
          |-------------------------------------+-------+--------------|
          | Factory configured - do not alter   |  JP5  | Unidentified |
          +------------------------------------------------------------+
