       # PHILIPS CONSUMER ELECTRONICS, CO.

          PCA761AW

          Card Type       Sound card

          Chip Set        Unidentified
          Maximum Onboard Unidentified
          Memory
          I/O Options     Game/MIDI port, line in, speaker out,
                          microphone in, audio in - CD-ROM
          Data Bus        16-bit ISA

 (IMG) IMG 1


          +------------------------------------------------------------+

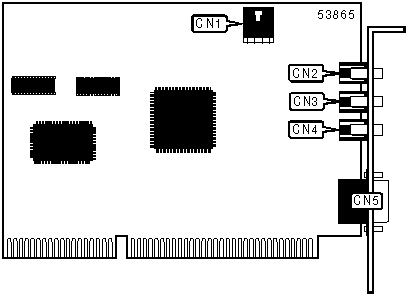

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Function         | Label |     Function     | Label |
          |-------------------------+-------+------------------+-------|
          | Audio in - CD-ROM (IDE) |  CN1  | Speaker out      |  CN4  |
          |-------------------------+-------+------------------+-------|
          | Line in                 |  CN2  | Game/MIDI port   |  CN5  |
          |-------------------------+-------+------------------+-------|
          | Microphone in           |  CN3  |                  |       |
          +------------------------------------------------------------+
