       # PHILIPS

          PCA70PS/PCA75WT

          Card Type   Sound card
          Chip Set    Unidentified
          I/O Options CD-ROM interface, Game/MIDI port, CD audio, Wave
                      table, PC Speaker, Speaker out, Line out, Line in,
                      Microphone jack
          Data Bus    16bit ISA
          Card Size   Half-length, full-height card

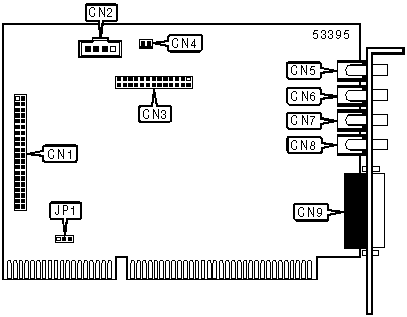

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Function        | Label |     Function      | Label |
          |------------------------+-------+-------------------+-------|
          | IDE CD-ROM connector   |  CN1  | Line out          |  CN6  |
          |------------------------+-------+-------------------+-------|
          | Audio in - CD-ROM      |  CN2  | Line in           |  CN7  |
          |------------------------+-------+-------------------+-------|
          | Wave table connector   |  CN3  | Microphone jack   |  CN8  |
          |------------------------+-------+-------------------+-------|
          | PC Speaker connector   |  CN4  | Game/MIDI port    |  CN9  |
          |------------------------+-------+-------------------+-------|
          | Speaker out            |  CN5  |                   |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |             Function              | Label |    Position    |
          |-----------------------------------+-------+----------------|
          | » | IDE CD-ROM interface enabled  |  JP1  |   Pins 1 & 2   |
          |   |                               |       |     closed     |
          |---+-------------------------------+-------+----------------|
          |   | IDE CD-ROM interface disabled |  JP1  |   Pins 2 & 3   |
          |   |                               |       |     closed     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |            PCA75WT DAUGHTER BOARD CONFIGURATION            |
          |------------------------------------------------------------|
          | Note: Location and configuration of PCA75WT Daughter Board |
          | are unidentified.                                          |
          +------------------------------------------------------------+
