       # PERIPHERALS ENTERPRISE COMPANY

          GW202 BABY I/O CARD

          Card Type       Multi-I/O card
          Chipset         Unidentified
          Maximum Onboard Unidentified
          Memory
          I/O Options     Floppy drive interface, game port, parallel
                          port, serial ports (2)
          Data Bus        8-bit ISA
          Card Size       Full height, half length

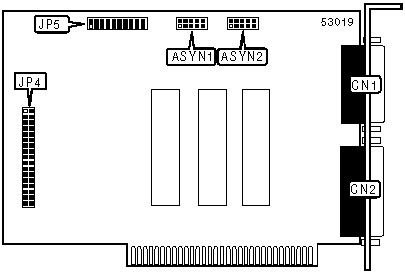

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function      | Label |       Function        | Label |
          |--------------------+-------+-----------------------+-------|
          | 10-pin serial port | ASYN1 | 25-pin parallel port  |  CN2  |
          | 1 - internal       |       | - external            |       |
          |--------------------+-------+-----------------------+-------|
          | 10-pin serial port | ASYN2 | 34-pin cable          |  JP4  |
          | 2 - internal       |       | connector - floppy    |       |
          |                    |       | drive                 |       |
          |--------------------+-------+-----------------------+-------|
          | 15-pin game port   |  CN1  |                       |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |            Setting             | Label |     Position      |
          |--------------------------------+-------+-------------------|
          | » | Game port enabled          |  JP5  | Pins 1 & 2 closed |
          |---+----------------------------+-------+-------------------|
          |   | Game port disabled         |  JP5  |  Pins 1 & 2 open  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      TIMER SELECTION                       |
          |------------------------------------------------------------|
          |      Setting       |                  JP5                  |
          |--------------------+---------------------------------------|
          |       Time 1       |           Pins 3 & 4 closed           |
          |--------------------+---------------------------------------|
          |       Time 2       |           Pins 4 & 6 closed           |
          |--------------------+---------------------------------------|
          |      Disabled      |          Pins 3, 4 & 6 open           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              PARALLEL PORT ADDRESS SELECTION               |
          |------------------------------------------------------------|
          |      Setting       |                  JP5                  |
          |--------------------+---------------------------------------|
          |    LPT1 (378h)     |           Pins 7 & 8 closed           |
          |--------------------+---------------------------------------|
          |    LPT2 (278h)     |           Pins 5 & 7 closed           |
          |--------------------+---------------------------------------|
          |      Disabled      |          Pins 5, 7 & 8 open           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              SERIAL PORT 1 ADDRESS SELECTION               |
          |------------------------------------------------------------|
          |      Setting      |                  JP5                   |
          |-------------------+----------------------------------------|
          |    COM1 (3F8h)    |      Pins 9 & 10, 13 & 14 closed       |
          |-------------------+----------------------------------------|
          |    COM3 (3E8h)    |      Pins 9 & 10, 11 & 13 closed       |
          |-------------------+----------------------------------------|
          |     Disabled      |    Pins 9, 10, 11, 12, 13 & 14 open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              SERIAL PORT 2 ADDRESS SELECTION               |
          |------------------------------------------------------------|
          |      Setting      |                  JP5                   |
          |-------------------+----------------------------------------|
          |    COM2 (2F8h)    |      Pins 15 & 16, 19 & 20 closed      |
          |-------------------+----------------------------------------|
          |    COM4 (2E8h)    |      Pins 15 & 16, 17 & 19 closed      |
          |-------------------+----------------------------------------|
          |     Disabled      |   Pins 15, 16, 17, 18, 19 & 20 open    |
          +------------------------------------------------------------+
