       # PROLINK COMPUTER, INC.

          TUNER CARD

          Card Type     Tuner card
          Chipset       Unidentified
          Controller
          I/O Options   Audio in, composite video in, S-video in, TV
                        antenna, video decoder connector
          Maximum DRAM  N/A

 (IMG) IMG 1


          +------------------------------------------------------------+

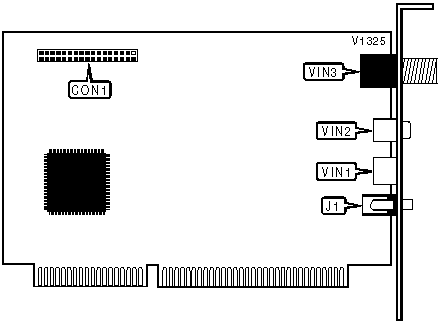

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Purpose       | Location |     Purpose     | Location |
          |--------------------+----------+-----------------+----------|
          | Video decoder      |   CON1   | Composite video |   VIN2   |
          | connector          |          | in              |          |
          |--------------------+----------+-----------------+----------|
          | Audio in           |    J1    | TV antenna      |   VIN3   |
          |--------------------+----------+-----------------+----------|
          | S-video in         |   VIN1   |                 |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                MISCELLANEOUS TECHNICAL NOTE                |
          |------------------------------------------------------------|
          | This Tuner card works in conjunction with the              |
          | PixelView-VideoCD MPEG/AVI card (V1324).                   |
          +------------------------------------------------------------+
