# QUATECH, INC.
SCB-1040, SCB-1050
Card Type Serial controller
Chipset/Controller NEC
I/O Options Serial port
Maximum DRAM N/A

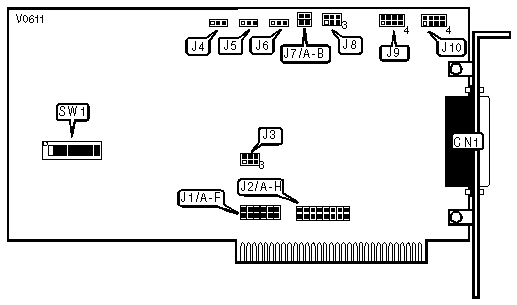

(IMG) IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| Serial port - DB-25 | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECT - J1 |
|------------------------------------------------------------|
|Setting|Jumper A|Jumper B|Jumper C|Jumper D|Jumper E|Jumper |
| | | | | | | F |
|-------+--------+--------+--------+--------+--------+-------|
|» |IRQ4| open | open | closed | open | open | open |
|--+----+--------+--------+--------+--------+--------+-------|
| |IRQ2| closed | open | open | open | open | open |
|--+----+--------+--------+--------+--------+--------+-------|
| |IRQ3| open | closed | open | open | open | open |
|--+----+--------+--------+--------+--------+--------+-------|
| |IRQ5| open | open | open | closed | open | open |
|--+----+--------+--------+--------+--------+--------+-------|
| |IRQ6| open | open | open | open | closed | open |
|--+----+--------+--------+--------+--------+--------+-------|
| |IRQ7| open | open | open | open | open |closed |
+------------------------------------------------------------+
+------------------------------------------------------------------+
| DMA SELECT - J2 |
|------------------------------------------------------------------|
| DMA | A | B | C | D | E | F | G | H |
|----------+------+------+------+------+------+------+------+------|
|»|CH 1 for|closed| open |closed| open | open | open | open | open |
| |transmit| | | | | | | | |
|-+--------+------+------+------+------+------+------+------+------|
|»|CH 3 for| open | open | open | open | open |closed| open |closed|
| |receive | | | | | | | | |
|-+--------+------+------+------+------+------+------+------+------|
| |CH3 for | open |closed| open | open | open |closed| open |closed|
| |transmit| | | | | | | | |
|-+--------+------+------+------+------+------+------+------+------|
| |CH1 for |closed| open | open | open | open | open |closed| open |
| |receive | | | | | | | | |
|-+--------+------+------+------+------+------+------+------+------|
| |CH1 for |closed| open | open | open |closed| open | open | open |
| |transmit| | | | | | | | |
| | and | | | | | | | | |
| |receive | | | | | | | | |
|-+--------+------+------+------+------+------+------+------+------|
| |CH3 for | open | open | open |closed| open | open | open |closed|
| |transmit| | | | | | | | |
| | and | | | | | | | | |
| |receive | | | | | | | | |
+------------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT MODE |
|------------------------------------------------------------|
| Setting | J3 |
|---------------------------------------+--------------------|
| » | Use dedicated IRQ | pins 1 & 4 closed |
|---+-----------------------------------+--------------------|
| | Share IRQ with compatible Quatech | pins 2 & 5, 3 & 6 |
| | card | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RECEIVE CLOCK SOURCE |
|------------------------------------------------------------|
| Source | J4 |
|----------------------------+-------------------------------|
| » | Internal | pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | External | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRANSMIT CLOCK SOURCE |
|------------------------------------------------------------|
| Source | J5 |
|----------------------------+-------------------------------|
| » | Internal | pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | External | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| -SYNC/IPS SELECT |
|------------------------------------------------------------|
| Source | J6 |
|----------------------------------------+-------------------|
| » | Intenal synchronization mode sync | pins 2 & 3 closed |
| | notification signal enabled | |
|---+------------------------------------+-------------------|
| | External synchronization mode - | pins 1 & 2 closed |
| | sync notification signal enabled | |
|---+------------------------------------+-------------------|
| | Asynchronous mode - general | pins 1 & 2 closed |
| | purpose signal enabled | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SOURCE - J7 |
|------------------------------------------------------------|
| Setting | Jumper A | Jumper B |
|------------------------------------+-----------+-----------|
| » | From communications controller | closed | open |
|---+--------------------------------+-----------+-----------|
| | From DMA terminal count | open | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RTS/CTS MODE |
|------------------------------------------------------------|
| Setting | J8 |
|--------------------------------+---------------------------|
| » | RTS/CTS connected to CN1 | pins 1 & 4, 2 & 5 closed |
|---+----------------------------+---------------------------|
| | RTS/CTS loopback enabled | pins 1 & 2, 4 & 5 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| HALF/FULL-DUPLEX SELECT |
|------------------------------------------------------------|
| Setting | J8 |
|-----------------------------+------------------------------|
| » | Half-duplex | pins 3 & 6 closed |
|---+-------------------------+------------------------------|
| | Full duplex | pins 3 & 6 open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RECEIVE CLOCK BUFFER SELECTION |
|------------------------------------------------------------|
| External Clock | J9 |
|--------------------------+---------------------------------|
| » | EIA-422/EIA-485 | pins 1 & 5, 2 & 3, 7 & 8 closed |
|---+----------------------+---------------------------------|
| | TTL | pins 1 & 2, 4 & 8 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRANSMIT CLOCK BUFFER SELECTION |
|------------------------------------------------------------|
| External Clock | J10 |
|--------------------------+---------------------------------|
| » | EIA-422/EIA-485 | pins 1 & 5, 2 & 3, 7 & 8 closed |
|---+----------------------+---------------------------------|
| | TTL | pins 1 & 2, 4 & 8 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SYNCHRONOUS BLOCK TRANSFER COMPATIBILITY |
|------------------------------------------------------------|
| Setting | J11 |
|---------------------------------------+--------------------|
| » | Block Transfer software | pins 1 & 2 closed |
| | compatible | |
|----+----------------------------------+--------------------|
| | Quatech REV A compatible | pins 2 & 3 closed |
|------------------------------------------------------------|
| Note:The location of jumper J11 is not specified in |
| manufacturer’s documentation. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O ADDRESS CONFIGURATION ||
|-----------------------------------------------------------||
| Base Address | SW1 ||
|------------------------+----------------------------------||
| » | 210h | 2, 3, 4, 5 & 7 on ||
|---+--------------------+----------------------------------||
| | 0F0h | 1, 2 & 7 on ||
|---+--------------------------------------------------------|
| | Note (1): The address range for the SCB-1040/1050 is |
| | from 0 to 3F8h. The switches are a binary |
| | representation of the addresses. When a switch is |
| | off, the corresponding bit is set to 1 and has the |
| | following decimal value: SW1/1=2, SW1/2=1, SW1/3=8, |
| | SW1/4=4, SW1/5=2, SW1/6=1, SW1/7=8. SW1/8 is not |
| | used and the factory setting should not be altered. |
| | The SCB-1040/1050 requires 8 consecutive address |
| | locations. |
+------------------------------------------------------------+
