       # ROLAND CORPORATION

          MPU-IMC

          Card Type          Sound Card
          Chipset/Controller Roland
          I/O Options        MIDI processor interface
          Maximum DRAM       N/A

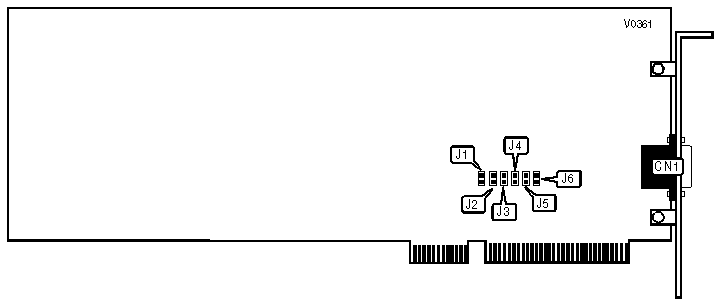

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |            Purpose             |         Location          |
          |--------------------------------+---------------------------|
          | 9-pin MIDI processor connector |            CN1            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      INTERRUPT SELECT                      |
          |------------------------------------------------------------|
          |  IRQ   |   J1   |   J2   |   J3   |   J4   |  J5   |  J6   |
          |--------+--------+--------+--------+--------+-------+-------|
          |»| IRQ9 |  Open  |  Open  |  Open  |  Open  | Open  |Closed |
          |-+------+--------+--------+--------+--------+-------+-------|
          | | IRQ3 |  Open  |  Open  |  Open  |  Open  |Closed | Open  |
          |-+------+--------+--------+--------+--------+-------+-------|
          | | IRQ4 |  Open  |  Open  |  Open  | Closed | Open  | Open  |
          |-+------+--------+--------+--------+--------+-------+-------|
          | | IRQ5 |  Open  |  Open  | Closed |  Open  | Open  | Open  |
          |-+------+--------+--------+--------+--------+-------+-------|
          | | IRQ6 |  Open  | Closed |  Open  |  Open  | Open  | Open  |
          |-+------+--------+--------+--------+--------+-------+-------|
          | | IRQ7 | Closed |  Open  |  Open  |  Open  | Open  | Open  |
          +------------------------------------------------------------+
