# MATROX GRAPHICS, INC.
ILLUMINATOR16/AT/A
Card Type Video
Chipset Controller N/A
I/O Options Video
Maximum DRAM N/A
(IMG) IMG 1
+------------------------------------------------------------+

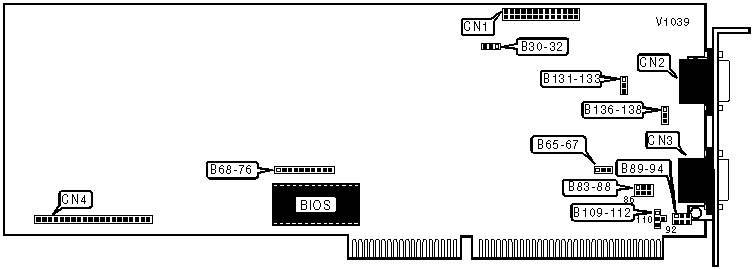

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| VGA feature | CN1 | Video out | CN3 |
| connector | | | |
|--------------------+----------+-----------------+----------|
| Video in | CN2 | Video | CN4 |
| | | stabilizer | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIOS ADDRESS SELECTION |
|------------------------------------------------------------|
| Address | B68-76 |
|--------------------+---------------------------------------|
| » | C0000h | Pins 68 & 69, 71 & 72, 74 & 75 closed |
|---+----------------+---------------------------------------|
| | C4000h | Pins 68 & 69, 71 & 72, 75 & 76 closed |
|---+----------------+---------------------------------------|
| | C8000h | Pins 68 & 69, 72 & 73, 74 & 75 closed |
|---+----------------+---------------------------------------|
| | CC000h | Pins 68 & 69, 72 & 73, 75 & 76 closed |
|---+----------------+---------------------------------------|
| | D0000h | Pins 69 & 70, 71 & 72, 74 & 75 closed |
|---+----------------+---------------------------------------|
| | D4000h | Pins 69 & 70, 71 & 72, 75 & 76 closed |
|---+----------------+---------------------------------------|
| | D8000h | Pins 69 & 70, 72 & 73, 74 & 75 closed |
|---+----------------+---------------------------------------|
| | DC000h | Pins 69 & 70, 72 & 73, 75 & 76 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INPUT SIGNAL |
|------------------------------------------------------------|
| Configuration | B30-32, B131-133, B136-138 |
|----------------+-------------------------------------------|
| » | Composite | Pins 31 & 32, 131 & 132, 136 & 137 closed |
|---+------------+-------------------------------------------|
| | S-Video | Pins 30 & 31, 132 & 133, 137 & 138 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| OUTPUT SIGNAL |
|------------------------------------------------------------|
| Configuration | B89-94 |
|-------------------------+----------------------------------|
| » | Compsite | Pins 90 & 91, 93 & 94 closed |
|--------+----------------+----------------------------------|
| | S-Video | Pins 89 & 90, 92 & 93 closed |
|------------------------------------------------------------|
| Note: Pins 89-91 control Luma. Pins 92-94 control Chroma |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SYNC/COLOR MIX |
|------------------------------------------------------------|
| Color | B65-67, B83-88 |
|--------------+---------------------------------------------|
| Red | Pins 66 & 67, 83 & 84, 87 & 88 closed |
|--------------+---------------------------------------------|
| Green | Pins 65 & 66, 84 & 85, 87 & 88 closed |
|--------------+---------------------------------------------|
| Blue | Pins 66 & 67, 84 & 85, 86 & 87 closed |
|--------------+---------------------------------------------|
| Unmixed | Pins 66 & 67, 84 & 85, 86 & 87 closed |
|------------------------------------------------------------|
| Note: Set B109-112 for VGA pass-through (see special sync |
| table) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SPECIAL SYNC |
|------------------------------------------------------------|
| Sync | B109-B112 |
|------------------------------+-----------------------------|
| Separate hsync, vsync | Pins 109 & 110 closed |
|------------------------------+-----------------------------|
| Digital csync | Pins 110 & 111 closed |
|------------------------------+-----------------------------|
| Analog cysync | Pins 110 & 112 closed |
|------------------------------+-----------------------------|
| VGA passthrough | Pins 109 & 110 closed |
+------------------------------------------------------------+
