       # GENOA SYSTEMS CORPORATION

          AUDIOBLITZ A3100 CLASSIC

          Card Type       Sound card
          Chip Set        Unidentified
          Maximum Onboard N/A
          Memory
          I/O Options     MIDI/game port, microphone in, line in, volume
                          control, speaker out
          Hard Drives     None
          supported
          Floppy drives   None
          supported
          Data Bus        8-bit ISA
          Card Size       Half-length, full-height card


 (IMG) IMG 1


          +------------------------------------------------------------+

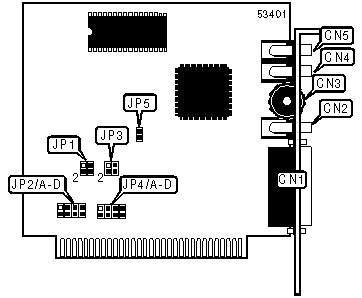

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Function       | Label |      Function       | Label |
          |----------------------+-------+---------------------+-------|
          | MIDI/game port       |  CN1  | Line in             |  CN4  |
          |----------------------+-------+---------------------+-------|
          | Speaker out          |  CN2  | Microphone in       |  CN5  |
          |----------------------+-------+---------------------+-------|
          | Volume control       |  CN3  |                     |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Function                 | Label | Position |
          |-----------------------------------------+-------+----------|
          | » | Game port enabled                   |  JP5  |  Closed  |
          |---+-------------------------------------+-------+----------|
          |   | Game port disabled                  |  JP5  |   Open   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   DMA CHANNEL SELECTION                    |
          |------------------------------------------------------------|
          | Channel | JP1/pins 1  | JP1/pins 3 | JP3/pins 1 | JP3/pins |
          |         |     & 2     |    & 4     |    & 2     |  3 & 4   |
          |---------+-------------+------------+------------+----------|
          | »  | 1  |    Open     |   Closed   |    Open    |  Closed  |
          |----+----+-------------+------------+------------+----------|
          |    | 3  |   Closed    |    Open    |   Closed   |   Open   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 I/O PORT ADDRESS SELECTION                 |
          |------------------------------------------------------------|
          |   Address   |   JP2/A   |   JP2/B   |   JP2/C   |  JP2/D   |
          |-------------+-----------+-----------+-----------+----------|
          | » |  220h   |   Open    |   Open    |  Closed   |  Closed  |
          |---+---------+-----------+-----------+-----------+----------|
          |   |  240h   |  Closed   |  Closed   |   Open    |   Open   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |             DIGITAL AUDIO INTERRUPT SELECTION              |
          |------------------------------------------------------------|
          |     IRQ     |   JP4/A   |   JP4/B   |   JP4/C   |  JP4/D   |
          |-------------+-----------+-----------+-----------+----------|
          |   |  IRQ2   |   Open    |   Open    |   Open    |  Closed  |
          |---+---------+-----------+-----------+-----------+----------|
          |   |  IRQ3   |   Open    |   Open    |  Closed   |   Open   |
          |---+---------+-----------+-----------+-----------+----------|
          |   |  IRQ5   |   Open    |  Closed   |   Open    |   Open   |
          |---+---------+-----------+-----------+-----------+----------|
          | » |  IRQ7   |  Closed   |   Open    |   Open    |   Open   |
          +------------------------------------------------------------+
