       # ANDREW CORPORATION

          3X TWIN MULTI-TWIN

          Card Type              Parallel card
          Maximum Onboard Memory 128KB
          I/O Options            Parallel port
          Data Bus               8 bit ISA

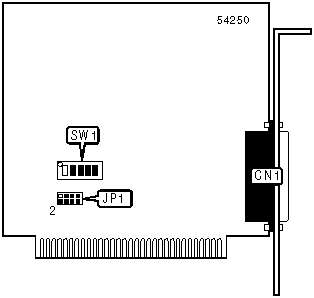

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |           Label            |
          |-------------------------------+----------------------------|
          | Parallel port                 |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Note: Card accepts up to 128KB memory. The location is     |
          | unidentified.                                              |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   I/O ADDRESS SELECTION                    |
          |------------------------------------------------------------|
          | Setting  |  SW1/1  |  SW1/2  |  SW1/3  |  SW1/4  |  SW1/5  |
          |----------+---------+---------+---------+---------+---------|
          |   200    |   Off   |   On    |   On    |   On    |   On    |
          |----------+---------+---------+---------+---------+---------|
          |   220    |   Off   |   On    |   On    |   On    |   Off   |
          |----------+---------+---------+---------+---------+---------|
          |   240    |   Off   |   On    |   On    |   Off   |   On    |
          |----------+---------+---------+---------+---------+---------|
          |   260    |   Off   |   On    |   On    |   Off   |   Off   |
          |----------+---------+---------+---------+---------+---------|
          |   280    |   Off   |   On    |   Off   |   On    |   On    |
          |----------+---------+---------+---------+---------+---------|
          |   2A0    |   Off   |   On    |   Off   |   On    |   Off   |
          |----------+---------+---------+---------+---------+---------|
          |   2C0    |   Off   |   On    |   Off   |   Off   |   On    |
          |----------+---------+---------+---------+---------+---------|
          |   2E0    |   Off   |   On    |   Off   |   Off   |   Off   |
          |----------+---------+---------+---------+---------+---------|
          |   300    |   Off   |   Off   |   On    |   On    |   On    |
          |----------+---------+---------+---------+---------+---------|
          |   320    |   Off   |   Off   |   On    |   On    |   Off   |
          |----------+---------+---------+---------+---------+---------|
          |   340    |   Off   |   Off   |   On    |   Off   |   On    |
          |----------+---------+---------+---------+---------+---------|
          |   360    |   Off   |   Off   |   On    |   Off   |   Off   |
          |----------+---------+---------+---------+---------+---------|
          |   380    |   Off   |   Off   |   Off   |   On    |   On    |
          |----------+---------+---------+---------+---------+---------|
          |   3A0    |   Off   |   Off   |   Off   |   Off   |   On    |
          |----------+---------+---------+---------+---------+---------|
          |   3E0    |   Off   |   Off   |   Off   |   Off   |   Off   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |             PARALLEL PORT INTERRUPT SELECTION              |
          |------------------------------------------------------------|
          |  IRQ   | JP1/1 & 2  | JP1/3 & 4  | JP1/5 & 6  | JP1/7 & 8  |
          |--------+------------+------------+------------+------------|
          |   2    |   Closed   |    Open    |    Open    |    Open    |
          |--------+------------+------------+------------+------------|
          |   3    |    Open    |   Closed   |    Open    |    Open    |
          |--------+------------+------------+------------+------------|
          |   4    |    Open    |    Open    |   Closed   |    Open    |
          |--------+------------+------------+------------+------------|
          |   5    |    Open    |    Open    |    Open    |   Closed   |
          +------------------------------------------------------------+
