       # VIVA COMPUTER COMPANY

          SMC37C75 VER. 2

          +------------------------------------------------------------+
          |------------------------------------------------------------|
          | Data bus:             | 16-bit, ISA                        |
          |-----------------------+------------------------------------|
          | Size:                 | Half-length, half-height card      |
          |-----------------------+------------------------------------|
          | Hard drive supported: | Two IDE (AT) Interface drives      |
          |-----------------------+------------------------------------|
          | Floppy drives         | Two 360KB, 720KB, 1.2MB, or 1.44MB |
          | supported:            |                                    |
          +------------------------------------------------------------+

 (IMG) IMG 1


          +------------------------------------------------------------+

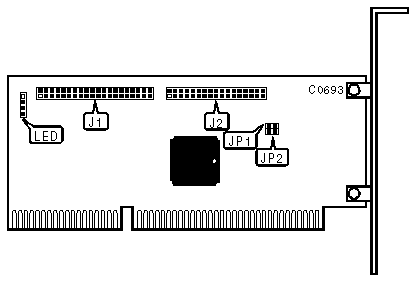

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                  Function                   |   Location   |
          |---------------------------------------------+--------------|
          | 40-pin IDE (AT) Interface connector         |      J1      |
          |---------------------------------------------+--------------|
          | 34-pin control cable connector-floppy drive |      J2      |
          |---------------------------------------------+--------------|
          | 4-pin connector-drive active LED            |     LED      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function                | Location | Setting |
          |---------------------------------------+----------+---------|
          | » | Floppy drive interface - enabled  |   JP1    |  open   |
          |---+-----------------------------------+----------+---------|
          |   | Floppy drive interface - disabled |   JP1    | closed  |
          |---+-----------------------------------+----------+---------|
          | » | Hard drive interface - enabled    |   JP2    |  open   |
          |---+-----------------------------------+----------+---------|
          |   | Hard drive interface - disabled   |   JP2    | closed  |
          +------------------------------------------------------------+
