       # UNIDENTIFIED

          EX-5105(A4 MINI)

          Data Bus:            16-bit ISA
          Size:                Half-length, half-height card
          Hard drives          IDE (AT) drives (2)
          supported:
          Floppy drives        Two 360KB, 720KB, 1.2MB, or 1.44MB drives
          supported:

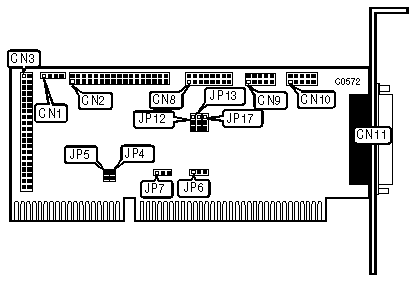

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                   Function                   |  Location   |
          |----------------------------------------------+-------------|
          | 4-pin connector-drive active LED             |     CN1     |
          |----------------------------------------------+-------------|
          | 34-pin data cable connector-floppy drive     |     CN2     |
          |----------------------------------------------+-------------|
          | 40-pin IDE (AT) interface connector internal |     CN3     |
          |----------------------------------------------+-------------|
          | 16-pin game port                             |     CN8     |
          |----------------------------------------------+-------------|
          | 10-pin connector-serial port 1               |     CN9     |
          |----------------------------------------------+-------------|
          | 10-pin connector-serial port 2               |    CN10     |
          |----------------------------------------------+-------------|
          | 25-pin connector-parallel port               |    CN11     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  HARD DISK CONFIGURATION                   |
          |------------------------------------------------------------|
          |           Function            |     JP4     |     JP5      |
          |-------------------------------+-------------+--------------|
          | » | Hard drive enabled        |   Closed    |    Closed    |
          |---+---------------------------+-------------+--------------|
          |   | Hard drive disabled       |    Open     |     Open     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 SERIAL PORT CONFIGURATION                  |
          |------------------------------------------------------------|
          |  Port 1  | Port 2  |        JP6        |        JP7        |
          |----------+---------+-------------------+-------------------|
          |   COM1   |  COM2   | Pins 1 &2 closed  | Pins 1 & 2 closed |
          |----------+---------+-------------------+-------------------|
          |   COM1   |  COM4   | Pins 1 & 2 closed | Pins 2 & 3 closed |
          |----------+---------+-------------------+-------------------|
          |   COM3   |  COM4   | Pins 2 & 3 closed | Pins 1 & 2 closed |
          |----------+---------+-------------------+-------------------|
          |   COM2   |  COM3   | Pins 2 & 3 closed | Pins 2 & 3 closed |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 PRINTER PORT CONFIGURATION                 |
          |------------------------------------------------------------|
          |      Function      |       JP12        |       JP13        |
          |--------------------+-------------------+-------------------|
          |        LPT2        | Pins 1 & 2 closed | Pins 1 & 2 closed |
          |--------------------+-------------------+-------------------|
          |        LPT1        | Pins 1 & 2 closed | Pins 2 & 3 closed |
          |--------------------+-------------------+-------------------|
          |        LPT3        | Pins 2 & 3 closed | Pins 1 & 2 closed |
          |--------------------+-------------------+-------------------|
          |      Disabled      | Pins 2 & 3 closed | Pins 2 & 3 closed |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |          Function          | Location  |      Setting      |
          |----------------------------+-----------+-------------------|
          | » | Floppy drive enabled   |   JP17    | Pins 1 & 2 closed |
          |---+------------------------+-----------+-------------------|
          |   | Floppy drive disabled  |   JP17    | Pins 2 & 3 closed |
          +------------------------------------------------------------+
