       # UNIDENTIFIED

          8303-011 HFI

          Data bus:            16-bit, ISA
          Size:                Half-lenght, full-height card
          Hard drive           Two IDE (AT) Interface drives
          supported:
          Floppy drives        Two 360KB, 720KB, 1.2MB, or 1.44MB drives
          supported:
          Maximum heads/cyl.:  8 heads and 1024 cylinders

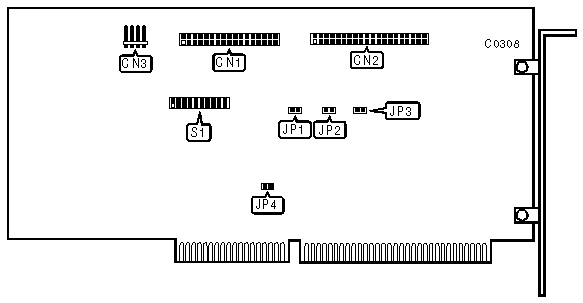

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                    Function                     | Location |
          |-------------------------------------------------+----------|
          | 34-pin control cable connector-hard drive       |   CN1    |
          |-------------------------------------------------+----------|
          | 40-pin IDE (AT) Interface control cable         |   CN2    |
          | connector-internal                              |          |
          |-------------------------------------------------+----------|
          | 4-pin connector-drive active LED                |   CN3    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |            Function            |   Location   |  Setting   |
          |--------------------------------+--------------+------------|
          | » | Factory configured - do    |     JP1      | pins 2 & 3 |
          |   | not alter                  |              |   closed   |
          |---+----------------------------+--------------+------------|
          | » | Factory configured - do    |     JP2      | pins 1 & 2 |
          |   | not alter                  |              |   closed   |
          |---+----------------------------+--------------+------------|
          | » | Supports systems greater   |     JP3      | pins 1 & 2 |
          |   | than 12mhz                 |              |   closed   |
          |---+----------------------------+--------------+------------|
          |   | Supports 12mhz systems     |     JP3      | pins 2 & 3 |
          |   |                            |              |   closed   |
          |---+----------------------------+--------------+------------|
          | » | Hard drive port address is |     JP4      | pins 1 & 2 |
          |   | 1F0-1F7h & 3F6-3F7h        |              |   closed   |
          |---+----------------------------+--------------+------------|
          |   | Hard drive port address is |     JP4      | pins 2 & 3 |
          |   | 170-177h & 3760-377h       |              |   closed   |
          |---+----------------------------+--------------+------------|
          |   | Not used                   |    S1/1-7    |   closed   |
          |---+----------------------------+--------------+------------|
          | » | Floppy drive enabled       | S1/jumper 8  |   closed   |
          |---+----------------------------+--------------+------------|
          |   | Floppy drive disabled      | S1/jumper 8  |    open    |
          |---+----------------------------+--------------+------------|
          | » | Hard drive enabled         | S1/jumper 9  |   closed   |
          |---+----------------------------+--------------+------------|
          |   | Hard drive disabled        | S1/jumper 9  |    open    |
          |---+----------------------------+--------------+------------|
          | » | Factory configured - do    | S1/jumper 10 |    all     |
          |   | not alter                  |              |            |
          +------------------------------------------------------------+
