# UNIDENTIFIED
IDE/FCD
Data bus: 16-bit, ISA
Size: Half-length, half-height card
Hard drives supported: Two IDE (AT) Interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
Maximum heads/cyl.: 8 heads and 1024 cylinders
(IMG) IMG 1
+------------------------------------------------------------+

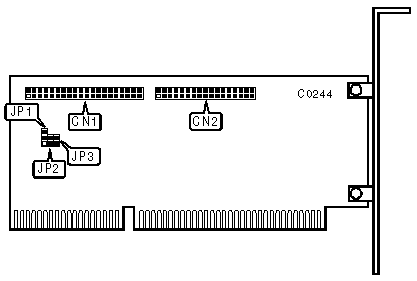

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-------------------------------------------------+----------|
| 40-pin IDE (AT) Interface control cable | CN1 |
| connector-internal | |
|-------------------------------------------------+----------|
| 34-pin data cable connector-floppy drive | CN2 |
|-------------------------------------------------+----------|
| IDE interface LED | JP3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|---------------------------+------------+-------------------|
| » | IRQ14 | JP1 | pins 1 & 2 closed |
|---+-----------------------+------------+-------------------|
| | IRQ15 | JP1 | pins 2 & 3 closed |
|---+-----------------------+------------+-------------------|
| » | Hard drive enabled | JP2 | closed |
|---+-----------------------+------------+-------------------|
| | Hard drive disabled | JP2 | open |
+------------------------------------------------------------+
