       # SYMBIOS LOGIC

          SYM8951U

          Card Type               Hard drive controller card
          Hard Drives supported   Up to 16 SCSI devices
          Floppy drives supported None
          Data Bus                32-bit PCI
          Card Size               Half-length, full-height card

 (IMG) IMG 1


          +------------------------------------------------------------+

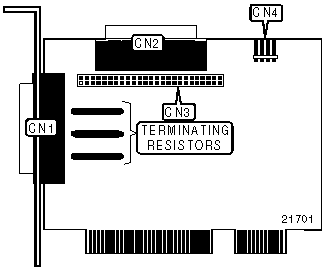

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |  Function   | Location |        Function        | Location |
          |-------------+----------+------------------------+----------|
          | 68-pin SCSI |   CN1    | 50-pin SCSI connector  |   CN3    |
          | connector - |          | - internal             |          |
          | external    |          |                        |          |
          |-------------+----------+------------------------+----------|
          | 68-pin SCSI |   CN2    | 4-pin connector -      |   CN4    |
          | connector - |          | drive active LED       |          |
          | internal    |          |                        |          |
          +------------------------------------------------------------+
