       # TMC RESEARCH CORPORATION

          IFSP (VER. 1.0A)

          Card Type           Hard drive controller card
          Hard Drives         Two IDE (AT) drives
          supported
          Floppy drives       Four 360KB, 720KB, 1.2MB, or 1.44MB drives
          supported
          Data Bus            16-bit ISA
          Card Size           Half-length, full-height card

 (IMG) IMG 1


          +------------------------------------------------------------+

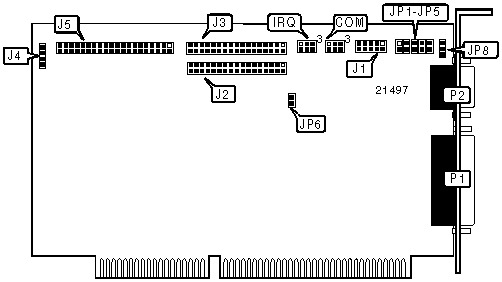

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |     Function      | Location |     Function     | Location |
          |-------------------+----------+------------------+----------|
          | 10-pin serial     |    J1    | 40-pin IDE(AT)   |    J5    |
          | port 2 - internal |          | connector        |          |
          |-------------------+----------+------------------+----------|
          | 34-pin cable 1    |    J2    | 25-pin parallel  |    P1    |
          | connector -       |          | port - external  |          |
          | floppy drive      |          |                  |          |
          |-------------------+----------+------------------+----------|
          | 34-pin cable 2    |    J3    | 9-pin serial     |    P2    |
          | connector -       |          | port 1 -         |          |
          | floppy drive      |          | external         |          |
          |-------------------+----------+------------------+----------|
          | 4-pin connector - |    J4    |                  |          |
          | drive active LED  |          |                  |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                USER CONFIGURABLE SETTINGS                  |
          |------------------------------------------------------------|
          |            Function            | Label |     Position      |
          |--------------------------------+-------+-------------------|
          | » | Serial port 2 enabled      |  JP4  |      Closed       |
          |---+----------------------------+-------+-------------------|
          |   | Serial port 2 disabled     |  JP4  |       Open        |
          |---+----------------------------+-------+-------------------|
          | » | Serial port 1 enabled      |  JP5  |      Closed       |
          |---+----------------------------+-------+-------------------|
          |   | Serial port 1 disabled     |  JP5  |       Open        |
          |---+----------------------------+-------+-------------------|
          | » | IDE(AT) interface enabled  |  JP6  |      Closed       |
          |---+----------------------------+-------+-------------------|
          |   | IDE(AT) interface disabled |  JP6  |       Open        |
          |---+----------------------------+-------+-------------------|
          | » | Parallel port IRQ 7 select |  JP8  | Pins 1 & 2 closed |
          |---+----------------------------+-------+-------------------|
          |   | Parallel port IRQ 5 select |  JP8  | Pins 2 & 3 closed |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |          PARALLEL PORT ADDRESS AND IRQ SELECTION           |
          |------------------------------------------------------------|
          |   Setting   | IRQ  |  JP1   |  JP2   |  JP3   |    JP8     |
          |-------------+------+--------+--------+--------+------------|
          | LPT1 (378h) |  7   |  Open  |  Open  | Closed | Pins 1 & 2 |
          |             |      |        |        |        |   closed   |
          |-------------+------+--------+--------+--------+------------|
          | LPT2 (278h) |  7   |  Open  | Closed |  Open  | Pins 1 & 2 |
          |             |      |        |        |        |   closed   |
          |-------------+------+--------+--------+--------+------------|
          | LPT3 (3BCh) |  5   | Closed |  Open  |  Open  | Pins 2 & 3 |
          |             |      |        |        |        |   closed   |
          |-------------+------+--------+--------+--------+------------|
          |  Disabled   | None | Closed | Closed | Closed |    N/A     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |          SERIAL PORT 1 ADDRESS AND IRQ SELECTION           |
          |------------------------------------------------------------|
          |   Setting   | Interrupt |       IRQ       |      COM       |
          |-------------+-----------+-----------------+----------------|
          | COM1 (3F8h) |     4     |   Pins 1 & 2    |   Pins 1 & 2   |
          |             |           |     closed      |     closed     |
          |-------------+-----------+-----------------+----------------|
          | COM3 (3E8h) |     5     |   Pins 2 & 3    |   Pins 2 & 3   |
          |             |           |     closed      |     closed     |
          |-------------+-----------+-----------------+----------------|
          |  Disabled   |   None    |      Open       |      Open      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |          SERIAL PORT 2 ADDRESS AND IRQ SELECTION           |
          |------------------------------------------------------------|
          |   Setting   | Interrupt |       IRQ       |      COM       |
          |-------------+-----------+-----------------+----------------|
          | COM2 (2F8h) |     3     |   Pins 4 & 5    |   Pins 4 & 5   |
          |             |           |     closed      |     closed     |
          |-------------+-----------+-----------------+----------------|
          | COM4 (2E8h) |     5     |   Pins 5 & 6    |   Pins 5 & 6   |
          |             |           |     closed      |     closed     |
          |-------------+-----------+-----------------+----------------|
          |  Disabled   |   None    |      Open       |      Open      |
          +------------------------------------------------------------+
