# TYAN COMPUTER CORPORATION
S1363-004 (Rev. 1.0)
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 32-bit PCI |
|-------------------+----------------------------------------|
| Size: | Half-length, Full-height card |
|-------------------+----------------------------------------|
| Hard drive | Four Enhanced IDE (AT) interface |
| supported: | drives |
|-------------------+----------------------------------------|
| Floppy drives | Two 360KB, 720KB, 1.2MB, or 1.44MB |
| supported: | drives |
+------------------------------------------------------------+
(IMG) IMG 1
+------------------------------------------------------------+

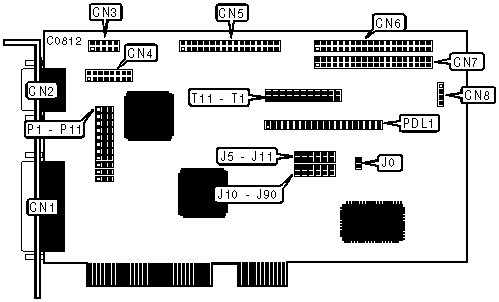

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|-------------------------------------------------+----------|
| 25-pin parallel port - external | CN1 |
|-------------------------------------------------+----------|
| 9-pin serial port - external | CN2 |
|-------------------------------------------------+----------|
| 10-pin serial port - internal | CN3 |
|-------------------------------------------------+----------|
| 16-pin game port - internal | CN4 |
|-------------------------------------------------+----------|
| 34-pin primary control cable connector - floppy | CN5 |
| drive | |
|-------------------------------------------------+----------|
| 40-pin primary IDE (AT) interface connector | CN6 |
|-------------------------------------------------+----------|
| 40-pin secondary IDE (AT) interface connector | CN7 |
|-------------------------------------------------+----------|
| 4-pin connector - drive active LED | CN8 |
|-------------------------------------------------+----------|
| 40-pin connector - paddle card | PDL1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|------------------------------------+-------------+---------|
| » | Floppy drive disk change | J0 | open |
| | signal not intercepted | | |
|---+--------------------------------+-------------+---------|
| | Floppy drive disk change being | J0 | closed |
| | intercepted | | |
|---+--------------------------------+-------------+---------|
| » | Fixed I/O address | J1 | closed |
|---+--------------------------------+-------------+---------|
| | Relocatable I/O address | J1 | open |
|---+--------------------------------+-------------+---------|
| » | Secondary IDE (AT) channel IRQ | J4 | closed |
| | to ISA IRQ15 | | |
|---+--------------------------------+-------------+---------|
| | No secondary IDE (AT) channel | J4 | open |
| | IRQ to ISA IRQ15 | | |
|---+--------------------------------+-------------+---------|
| » | Primary IDE (AT) channel | J5 | closed |
| | legacy IRQ to ISA IRQ14 | | |
|---+--------------------------------+-------------+---------|
| | No primary IDE (AT) channel | J5 | open |
| | legacy IRQ to ISA IRQ 14 | | |
|---+--------------------------------+-------------+---------|
| » | No buffered secondary IDE (AT) | J6 | open |
| | legacy IRQ to IRQ15 | | |
|---+--------------------------------+-------------+---------|
| | Buffered secondary IDE (AT) | J6 | closed |
| | legacy IRQ to IRQ15 | | |
|---+--------------------------------+-------------+---------|
| » | No buffered primary IDE (AT) | J7 | open |
| | legacy IRQ to IRQ14 | | |
|---+--------------------------------+-------------+---------|
| | Buffered primary IDE (AT) | J7 | closed |
| | legacy IRQ to IRQ14 | | |
|---+--------------------------------+-------------+---------|
| » | Factory configured - do not | J8 | N/A |
| | alter | | |
|---+--------------------------------+-------------+---------|
| » | Factory configured - do not | J9 | N/A |
| | alter | | |
|---+--------------------------------+-------------+---------|
| » | Factory configured - do not | J10 | N/A |
| | alter | | |
|---+--------------------------------+-------------+---------|
| » | Native mode IDE (AT) IRQ not | J11 | open |
| | used | | |
|---+--------------------------------+-------------+---------|
| | Native mode IDE (AT) IRQ’s to | J11 | closed |
| | PCI INTA | | |
|---+--------------------------------+-------------+---------|
| » | Factory configured - do not | J90 | N/A |
| | alter | | |
|---+--------------------------------+-------------+---------|
| » | Floppy drive order A:, B: | P1/pins 2 & | closed |
| | normal | 3 | |
|---+--------------------------------+-------------+---------|
| | Floppy drive order A:, B: | P1/pins 1 & | closed |
| | exchange | 2 | |
|---+--------------------------------+-------------+---------|
| » | Floppy controller I/O address | P2/pins 2 & | closed |
| | is 3F0h | 3 | |
|---+--------------------------------+-------------+---------|
| | Floppy controller I/O address | P2/pins 1 & | closed |
| | is 370h | 2 | |
|---+--------------------------------+-------------+---------|
| » | Floppy controller enabled | P3/pins 2 & | closed |
| | | 3 | |
|---+--------------------------------+-------------+---------|
| | Floppy controller disabled | P3/pins 1 & | closed |
| | | 2 | |
|---+--------------------------------+-------------+---------|
| » | Factory configured - do not | P10 | N/A |
| | alter | | |
|---+--------------------------------+-------------+---------|
| » | Factory configured - do not | P11 | N/A |
| | alter | | |
|---+--------------------------------+-------------+---------|
| » | Factory configured - do not | T1 | N/A |
| | alter | | |
|---+--------------------------------+-------------+---------|
| » | IRQ4 for serial port 1 | T4 | closed |
|---+--------------------------------+-------------+---------|
| | No interrupt for serial port 1 | T4 | open |
|---+--------------------------------+-------------+---------|
| » | IRQ3 for serial port 2 | T5 | closed |
|---+--------------------------------+-------------+---------|
| | No interrupt for serial port 2 | T5 | open |
|---+--------------------------------+-------------+---------|
| » | ISA (AT) uni-directional | T6 | open |
| | printer port mode | | |
|---+--------------------------------+-------------+---------|
| | PS2 bi-directional compatible | T6 | closed |
| | mode | | |
|---+--------------------------------+-------------+---------|
| » | Game port enabled | T7 | closed |
|---+--------------------------------+-------------+---------|
| | Game port disabled | T7 | open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS (CON’T) |
|------------------------------------------------------------|
| Function | Location | Setting |
|---------------------------------------+----------+---------|
| » | Factory configured - do not alter | T8 | N/A |
|---+-----------------------------------+----------+---------|
| » | Factory configured - do not alter | T9 | N/A |
|---+-----------------------------------+----------+---------|
| » | Factory configured - do not alter | T10 | N/A |
|---+-----------------------------------+----------+---------|
| » | Factory configured - do not alter | T11 | N/A |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ACCESS IDE (AT) CHANNELS I/O ADDRESS CONFIGURATION |
|------------------------------------------------------------|
| Setting | J2 | J3 |
|---------------------------+----------------+---------------|
| » | Enabled | open | closed |
|--------+------------------+----------------+---------------|
| | Disabled | closed | open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| Port | P8 | P9 |
|---------------------+-------------------+------------------|
| » | 1 (378h - 37Fh) | pins 2 & 3 closed | pins 2 & 3 |
| | | | closed |
|---+-----------------+-------------------+------------------|
| | 2 (278h - 27Fh) | pins 1 & 2 closed | pins 1 & 2 |
| | | | closed |
|---+-----------------+-------------------+------------------|
| | 3 (3BCh - 3BEh) | pins 1 & 2 closed | pins 2 & 3 |
| | | | closed |
|---+-----------------+-------------------+------------------|
| | Disabled | pins 2 & 3 closed | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 1 CONFIGURATION |
|------------------------------------------------------------|
| COM | P4 | P5 |
|------------------+--------------------+--------------------|
| » | COM1 (3F8h) | pins 2 & 3 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | COM3 (3E8h) | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | COM4 (2E8h) | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 1 & 2 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 CONFIGURATION |
|------------------------------------------------------------|
| COM | P6 | P7 |
|------------------+--------------------+--------------------|
| » | COM2 (2F8h) | pins 2 & 3 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | COM3 (3E8h) | pins 2 & 3 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | COM4 (2E8h) | pins 1 & 2 closed | pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | Disabled | pins 1 & 2 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ | T2 | T3 |
|-------------------------+-----------------+----------------|
| » | 7 | closed | open |
|----+--------------------+-----------------+----------------|
| | 5 | open | closed |
|----+--------------------+-----------------+----------------|
| | Disabled | open | open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORTS ADVANCED INTERRUPT CONFIGURATION |
|------------------------------------------------------------|
| Port 1 | Port 2 | T3 | T4 | T5 |
|--------------+----------+--------------+---------+---------|
| » | IRQ4 | IRQ3 | open | closed | closed |
|---+----------+----------+--------------+---------+---------|
| | IRQ3 | IRQ4 | open | pin 1 | pin 2 |
| | | | | to | to |
| | | | | T5/pin | T4/pin |
| | | | | 1 | 2 |
|---+----------+----------+--------------+---------+---------|
| | IRQ5 | IRQ3 | open | pin 1 | pin 1 |
| | | | | to | to |
| | | | | T5/pin | T4/pin |
| | | | | 1 | 1 |
|---+----------+----------+--------------+---------+---------|
| | IRQ4 | IRQ5 | pin 2 to | pin 2 | closed |
| | | | T4/pin 2 | to | |
| | | | | T3/pin | |
| | | | | 2 | |
|---+----------+----------+--------------+---------+---------|
| | IRQ4 | Disabled | open | closed | open |
| | | IRQ3 | | | |
|---+----------+----------+--------------+---------+---------|
| | Disabled | IRQ3 | open | open | closed |
| | IRQ4 | | | | |
|---+----------+----------+--------------+---------+---------|
| | Disabled | IRQ4 | open | pin 2 | pin2 to |
| | IRQ3 | | | to | T4/pin |
| | | | | T5/pin | 2 |
| | | | | 2 | |
|---+----------+----------+--------------+---------+---------|
| | Disabled | IRQ5 | pin 2 to | pin 2 | open |
| | IRQ4 | | T4/pin 2 | to | |
| | | | | T3/pin | |
| | | | | 2 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| Note: In order to utilize the S1366’s IDE and I/O |
| functions, the S136x paddle card must be installed on |
| connector PDL1. |
+------------------------------------------------------------+
