# TYAN COMPUTER CORPORATION
S1365 (Rev. 1.1)
+------------------------------------------------------------+
|------------------------------------------------------------|
| Data bus: | 32-bit PCI |
|--------------------------+---------------------------------|
| Size: | Half-length, Full-height card |
|--------------------------+---------------------------------|
| Hard drive supported: | Up to fifteen SCSI drives |
|--------------------------+---------------------------------|
| Floppy drives supported: | None |
+------------------------------------------------------------+
(IMG) IMG 1
+------------------------------------------------------------+

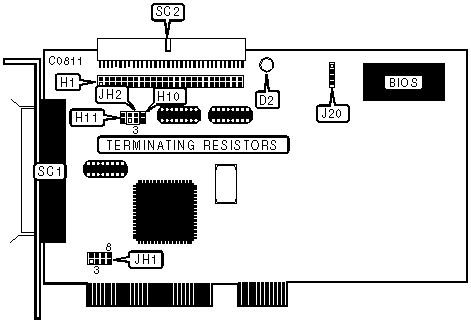

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Location |
|----------------------------------------+-------------------|
| 50-pin SCSI connector - internal | H1 |
|----------------------------------------+-------------------|
| 4-pin connector - drive active LED | J20 |
|----------------------------------------+-------------------|
| 50-pin SCSI connector - external | SC1 |
|----------------------------------------+-------------------|
| 68-pin SCSI connector - internal | SC2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Location | Setting |
|--------------------------------------+-----------+---------|
| SCSI active terminator | H10 | closed |
| enable/disable through software | | |
|--------------------------------------+-----------+---------|
| SCSI active terminator not | H10 | open |
| enabled/disabled through software | | |
|--------------------------------------+-----------+---------|
| Wide portion of terminator | H11 | closed |
| enable/disable through software | | |
|--------------------------------------+-----------+---------|
| Wide portion of terminator not | H11 | open |
| enabled/disabled through software | | |
|--------------------------------------+-----------+---------|
| Manual active on-board terminator | JH2/pins | closed |
| disabled | 1 & 2 | |
|--------------------------------------+-----------+---------|
| Manual active on-board terminator | JH2/pins | open |
| enabled | 1 & 2 | |
|--------------------------------------+-----------+---------|
| Manual active on-board wide portion | JH2/pins | closed |
| terminator disabled | 3 & 4 | |
|--------------------------------------+-----------+---------|
| Manual active on-board wide portion | JH2/pins | open |
| terminator enabled | 3 & 4 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PCI INTERRUPT LINE SELECTION |
|------------------------------------------------------------|
| INT | JH1 |
|----------------------------+-------------------------------|
| ยป | A | pins 1 & 2 closed |
|----+-----------------------+-------------------------------|
| | B | pins 3 & 4 closed |
|----+-----------------------+-------------------------------|
| | C | pins 5 & 6 closed |
|----+-----------------------+-------------------------------|
| | D | pins 7 & 8 closed |
+------------------------------------------------------------+
