       # SEAGATE TECHNOLOGY, INC.

          ST05X, ST325X

          +------------------------------------------------------------+
          +------------------------------------------------------------+

          Data bus: 8-bit, ISA

          Size: Half-length, full-height card

          Hard drives supported:  Two IDE (XT) Interface drives

          Floppy drives supported: None

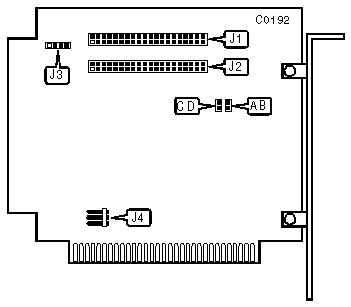

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                    Function                     | Location |
          |-------------------------------------------------+----------|
          | 40-pin XT interface (IDE) control cable         |    J1    |
          | connector-internal                              |          |
          |-------------------------------------------------+----------|
          | 40-pin XT interface (IDE) control cable         |    J2    |
          | connector-internal                              |          |
          |-------------------------------------------------+----------|
          | 4-pin connector-drive active LED                |    J3    |
          |-------------------------------------------------+----------|
          | 5-pin connector-DC power                        |    J4    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                        BIOS ADDRESS                        |
          |------------------------------------------------------------|
          |     Address      |     Jumper AB      |     Jumper CD      |
          |------------------+--------------------+--------------------|
          |      C800h       |        open        |        open        |
          |------------------+--------------------+--------------------|
          |      D800h       |        open        |       closed       |
          |------------------+--------------------+--------------------|
          |      D000h       |       closed       |        open        |
          |------------------+--------------------+--------------------|
          |      E000h       |       closed       |       closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               MISCELLANEOUS TECHNICAL NOTES                |
          |------------------------------------------------------------|
          |       Drive 0 on J1 uses I/O port address 320h-323h;       |
          |                                                            |
          |       Drive 1 on J2 uses I/O port address 324h-327h        |
          +------------------------------------------------------------+
