       # PROMISE TECHNOLOGY, INC.

          EIDE2300 PLUS (VER. 2)

          Card Type           Hard drive controller card/Multi I/O card
          I/O options         Serial ports (2), parallel port, game port
          Hard Drives         Two EIDE drives, two IDE drives
          supported
          Floppy drives       Two 1.2MB, 1.44MB or 2.88MB drives
          supported
          Data Bus            32-bit VESA Local Bus
          Card Size           Full-length, half-height card

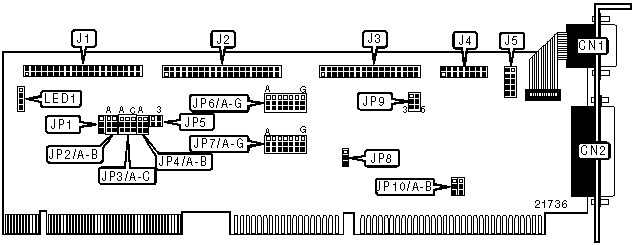

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |     Function      | Location |     Function     | Location |
          |-------------------+----------+------------------+----------|
          | 9-pin serial port |   CN1    | 34-pin cable     |    J3    |
          | 1 - external      |          | connector -      |          |
          |                   |          | floppy drive     |          |
          |-------------------+----------+------------------+----------|
          | 25-pin parallel   |   CN2    | 16-pin game port |    J4    |
          | port - external   |          |                  |          |
          |-------------------+----------+------------------+----------|
          | 40-pin primary    |    J1    | 10-pin serial    |    J5    |
          | EIDE(AT)          |          | port 2 -         |          |
          | connector         |          | internal         |          |
          |-------------------+----------+------------------+----------|
          | 40-pin secondary  |    J2    | 4-pin connector  |   LED1   |
          | IDE(AT) connector |          | - drive active   |          |
          |                   |          | LED              |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              | Label |   Position    |
          |------------------------------------+-------+---------------|
          | » | LBA disabled                   |  JP1  |  Pins 1 & 2   |
          |   |                                |       |    closed     |
          |---+--------------------------------+-------+---------------|
          |   | LBA enabled                    |  JP1  |  Pins 2 & 3   |
          |   |                                |       |    closed     |
          |---+--------------------------------+-------+---------------|
          | » | Factory configured - do not    | JP7/C | Unidentified  |
          |   | alter                          |       |               |
          |---+--------------------------------+-------+---------------|
          | » | Factory configured - do not    | JP7/D | Unidentified  |
          |   | alter                          |       |               |
          |---+--------------------------------+-------+---------------|
          | » | Game port enabled              | JP7/G |  Pins 1 & 2   |
          |   |                                |       |    closed     |
          |---+--------------------------------+-------+---------------|
          |   | Game port disabled             | JP7/G |  Pins 2 & 3   |
          |   |                                |       |    closed     |
          |---+--------------------------------+-------+---------------|
          | » | Parallel port ECP mode enabled |  JP8  |  Pins 1 & 2   |
          |   |                                |       |    closed     |
          |---+--------------------------------+-------+---------------|
          |   | Parallel port ECP mode         |  JP8  |  Pins 2 & 3   |
          |   | disabled                       |       |    closed     |
          |---+--------------------------------+-------+---------------|
          | » | Factory configured - do not    |  JP9  | Pins 1 & 2, 4 |
          |   | alter                          |       |  & 5 closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                       IRQ SELECTION                        |
          |------------------------------------------------------------|
          |            IRQ            |              JP5               |
          |---------------------------+--------------------------------|
          |      EIDE 14, IDE 15      |    Pins 1 & 2, 3 & 4 closed    |
          |---------------------------+--------------------------------|
          |      EIDE 15, IDE 14      |    Pins 1 & 3, 2 & 4 closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   EIDE CHANNEL SELECTION                   |
          |------------------------------------------------------------|
          |     Channel      |       JP2/A        |       JP2/B        |
          |------------------+--------------------+--------------------|
          | » |   Primary    | Pins 1 & 2 closed  | Pins 1 & 2 closed  |
          |---+--------------+--------------------+--------------------|
          |   |  Secondary   | Pins 1 & 2 closed  | Pins 2 & 3 closed  |
          |---+--------------+--------------------+--------------------|
          |   |   Disabled   | Pins 2 & 3 closed  | Pins 2 & 3 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  PI0 IDE SPEED SELECTION                   |
          |------------------------------------------------------------|
          |      SPEED       |       JP4/A        |       JP4/B        |
          |------------------+--------------------+--------------------|
          |   |    Mode 0    | Pins 1 & 2 closed  | Pins 1 & 2 closed  |
          |---+--------------+--------------------+--------------------|
          | » |    Mode 2    | Pins 2 & 3 closed  | Pins 1 & 2 closed  |
          |---+--------------+--------------------+--------------------|
          |   |    Mode 4    | Pins 1 & 2 closed  | Pins 2 & 3 closed  |
          |---+--------------+--------------------+--------------------|
          |   |    Mode 6    | Pins 2 & 3 closed  | Pins 2 & 3 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 ECP MODE ADDRESS SELECTION                 |
          |------------------------------------------------------------|
          |       Mode       |       JP10/A       |       JP10/B       |
          |------------------+--------------------+--------------------|
          |   |     DMA1     | Pins 1 & 2 closed  | Pins 1 & 2 closed  |
          |---+--------------+--------------------+--------------------|
          | » |     DMA3     | Pins 2 & 3 closed  | Pins 2 & 3 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              SERIAL PORT 1 ADDRESS SELECTION               |
          |------------------------------------------------------------|
          |     Setting      |       JP6/A        |       JP6/B        |
          |------------------+--------------------+--------------------|
          | » | COM1 (3F8h)  | Pins 1 & 2 closed  | Pins 1 & 2 closed  |
          |---+--------------+--------------------+--------------------|
          |   | COM2 (2F8h)  | Pins 1 & 2 closed  | Pins 2 & 3 closed  |
          |---+--------------+--------------------+--------------------|
          |   | COM3 (3E8h)  | Pins 2 & 3 closed  | Pins 1 & 2 closed  |
          |---+--------------+--------------------+--------------------|
          |   |   Disabled   | Pins 2 & 3 closed  | Pins 2 & 3 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              SERIAL PORT 2 ADDRESS SELECTION               |
          |------------------------------------------------------------|
          |     Setting      |       JP6/C        |       JP6/D        |
          |------------------+--------------------+--------------------|
          |   | COM1 (3F8h)  | Pins 1 & 2 closed  | Pins 2 & 3 closed  |
          |---+--------------+--------------------+--------------------|
          | » | COM2 (2F8h)  | Pins 1 & 2 closed  | Pins 1 & 2 closed  |
          |---+--------------+--------------------+--------------------|
          |   | COM4 (2E8h)  | Pins 2 & 3 closed  | Pins 1 & 2 closed  |
          |---+--------------+--------------------+--------------------|
          |   |   Disabled   | Pins 2 & 3 closed  | Pins 2 & 3 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   BIOS ADDRESS SELECTION                   |
          |------------------------------------------------------------|
          |   Address    |       JP3/A       |   JP3/B    |   JP3/C    |
          |--------------+-------------------+------------+------------|
          | » |  DC00h   | Pins 1 & 2 closed | Pins 1 & 2 | Pins 1 & 2 |
          |   |          |                   |   closed   |   closed   |
          |---+----------+-------------------+------------+------------|
          |   |  D8000h  | Pins 2 & 3 closed | Pins 1 & 2 | Pins 1 & 2 |
          |   |          |                   |   closed   |   closed   |
          |---+----------+-------------------+------------+------------|
          |   |  D4000h  | Pins 1 & 2 closed | Pins 2 & 3 | Pins 1 & 2 |
          |   |          |                   |   closed   |   closed   |
          |---+----------+-------------------+------------+------------|
          |   |  D0000h  | Pins 2 & 3 closed | Pins 2 & 3 | Pins 1 & 2 |
          |   |          |                   |   closed   |   closed   |
          |---+----------+-------------------+------------+------------|
          |   |  CC000h  | Pins 1 & 2 closed | Pins 1 & 2 | Pins 2 & 3 |
          |   |          |                   |   closed   |   closed   |
          |---+----------+-------------------+------------+------------|
          |   |  C8000h  | Pins 2 & 3 closed | Pins 1 & 2 | Pins 2 & 3 |
          |   |          |                   |   closed   |   closed   |
          |---+----------+-------------------+------------+------------|
          |   | Reserved | Pins 1 & 2 closed | Pins 2 & 3 | Pins 2 & 3 |
          |   |          |                   |   closed   |   closed   |
          |---+----------+-------------------+------------+------------|
          |   | Disabled | Pins 2 & 3 closed | Pins 2 & 3 | Pins 2 & 3 |
          |   |          |                   |   closed   |   closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |             PARALLEL PORT INTERRUPT SELECTION              |
          |------------------------------------------------------------|
          |     IRQ     |     JP6/E     |     JP6/F     |    JP6/G     |
          |-------------+---------------+---------------+--------------|
          | IRQ5 (278h) |  Pins 1 & 2   |  Pins 1 & 2   |  Pins 2 & 3  |
          |             |    closed     |    closed     |    closed    |
          |-------------+---------------+---------------+--------------|
          | IRQ7 (278h) |  Pins 1 & 2   |  Pins 1 & 2   |  Pins 1 & 2  |
          |             |    closed     |    closed     |    closed    |
          |-------------+---------------+---------------+--------------|
          | IRQ5 (378h) |  Pins 1 & 2   |  Pins 2 & 3   |  Pins 2 & 3  |
          |             |    closed     |    closed     |    closed    |
          |-------------+---------------+---------------+--------------|
          | IRQ7 (378h) |  Pins 1 & 2   |  Pins 2 & 3   |  Pins 1 & 2  |
          |             |    closed     |    closed     |    closed    |
          |-------------+---------------+---------------+--------------|
          |  Disabled   |  Pins 2 & 3   |  Pins 2 & 3   |     Open     |
          |             |    closed     |    closed     |              |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                PARALLEL PORT MODE SELECTION                |
          |------------------------------------------------------------|
          |       Setting        |      JP7/A       |      JP7/B       |
          |----------------------+------------------+------------------|
          | » |     ECP mode     |    Pins 1 & 2    |    Pins 1 & 2    |
          |   |                  |      closed      |      closed      |
          |---+------------------+------------------+------------------|
          |   |     EPP mode     |    Pins 2 & 3    |    Pins 1 & 2    |
          |   |                  |      closed      |      closed      |
          |---+------------------+------------------+------------------|
          |   |  Normal output   |    Pins 2 & 3    |    Pins 2 & 3    |
          |   |       only       |      closed      |      closed      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |            FLOPPY CONTROLLER CHANNEL SELECTION             |
          |------------------------------------------------------------|
          |     Channel      |       JP7/E        |       JP7/F        |
          |------------------+--------------------+--------------------|
          | » |   Primary    | Pins 1 & 2 closed  | Pins 1 & 2 closed  |
          |---+--------------+--------------------+--------------------|
          |   |  Secondary   | Pins 1 & 2 closed  | Pins 2 & 3 closed  |
          |---+--------------+--------------------+--------------------|
          |   |   Disabled   | Pins 2 & 3 closed  | Pins 2 & 3 closed  |
          +------------------------------------------------------------+
