       # Q LOGIC CORPORATION

          QLA 1042D

          Card Type       Hard drive controller card
          Chip Set        Unidentified
          Maximum Onboard Unidentified
          Memory
          Hard Drives     Up to 30 SCSI-2 Fast/Wide/Differential devices
          supported
          Floppy drives   None
          supported
          Data Bus        32-bit PCI

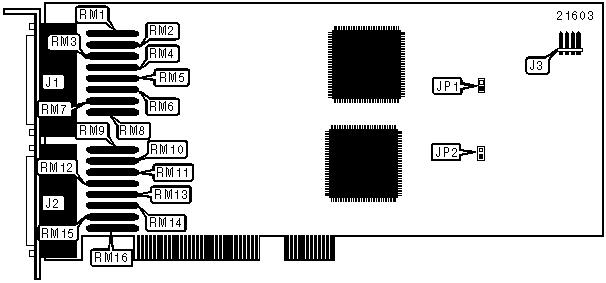

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |          Function          | Label |   Function    | Label |
          |----------------------------+-------+---------------+-------|
          | 68-pin SCSI connector -    |  J1   | LED connector |  J10  |
          | external                   |       |               |       |
          |----------------------------+-------+---------------+-------|
          | 68-pin SCSI connector -    |  J2   |               |       |
          | external                   |       |               |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Function                 | Label | Position |
          |-----------------------------------------+-------+----------|
          | » | Factory configured - do not alter   |  JP1  |  Closed  |
          |   | (BIOS bank)                         |       |          |
          |---+-------------------------------------+-------+----------|
          | » | Factory configured - do not alter   |  JP2  |  Closed  |
          |   | (BIOS bank)                         |       |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 TERMINATION CONFIGURATION                  |
          |------------------------------------------------------------|
          | Connector |   Controller   |     Termination Required      |
          |           |    Position    |                               |
          |-----------+----------------+-------------------------------|
          |    J1     | At end of SCSI |   Internal host terminators   |
          |           |      bus       |    RM1, RM7 & RM8 removed     |
          |-----------+----------------+-------------------------------|
          |    J1     | Not at end of  |   Internal host terminators   |
          |           |    SCSI bus    |        RM1-RM8 removed        |
          |-----------+----------------+-------------------------------|
          |    J2     | At end of SCSI |   Internal host terminators   |
          |           |      bus       |   RM9, RM11 & RM15 removed    |
          |-----------+----------------+-------------------------------|
          |    J2     | Not at end of  |   Internal host terminators   |
          |           |    SCSI bus    |        RM9-RM6 removed        |
          +------------------------------------------------------------+
