       # PROCOMP USA, INC.

          PBT-747C EISA

          +------------------------------------------------------------+
          |------------------------------------------------------------|
          | Data bus:         | 32-bit EISA                            |
          |-------------------+----------------------------------------|
          | Size:             | Half-length, full-height card          |
          |-------------------+----------------------------------------|
          | Hard drive        | Up to seven Fast SCSI-2 devices        |
          | supported:        |                                        |
          |-------------------+----------------------------------------|
          | Floppy drives     | Two 360KB, 720KB, 1.2MB, or 1.44MB     |
          | supported:        | drives                                 |
          +------------------------------------------------------------+

 (IMG) IMG 1


          +------------------------------------------------------------+

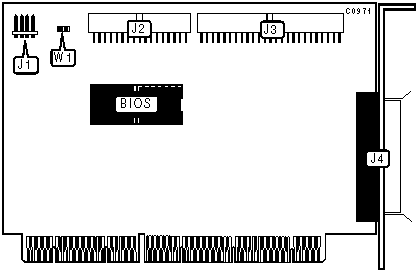

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                 Function                 |    Location     |
          |------------------------------------------+-----------------|
          | 4-pin connector - drive active LED       |       J1        |
          |------------------------------------------+-----------------|
          | 34-pin cable connector - floppy drive    |       J2        |
          |------------------------------------------+-----------------|
          | 50-pin SCSI connector - internal         |       J3        |
          |------------------------------------------+-----------------|
          | 50-pin SCSI connector - external         |       J4        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function               | Location  | Setting  |
          |-------------------------------------+-----------+----------|
          | » | Floppy drive interface enabled  |    W1     |  Closed  |
          |---+---------------------------------+-----------+----------|
          |   | Floppy drive interface disabled |    W1     |   Open   |
          +------------------------------------------------------------+
