       # PROCOMP USA, INC.

          PBT-946C PCI

          +------------------------------------------------------------+
          |------------------------------------------------------------|
          | Data bus:           | 32-bit PCI                           |
          |---------------------+--------------------------------------|
          | Size:               | One-quarter length, full-height card |
          |---------------------+--------------------------------------|
          | Hard drive          | Up to seven Fast SCSI-2 devices      |
          | supported:          |                                      |
          |---------------------+--------------------------------------|
          | Floppy drives       | None                                 |
          | supported:          |                                      |
          +------------------------------------------------------------+

 (IMG) IMG 1


          +------------------------------------------------------------+

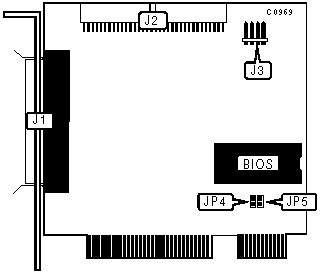

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                 Function                 |    Location     |
          |------------------------------------------+-----------------|
          | 50-pin SCSI connector - external         |       J1        |
          |------------------------------------------+-----------------|
          | 50-pin SCSI connector - internal         |       J2        |
          |------------------------------------------+-----------------|
          | 4-pin connector - drive active LED       |       J3        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   BIOS ADDRESS SELECTION                   |
          |------------------------------------------------------------|
          |                 Address                  |  JP4   |  JP5   |
          |------------------------------------------+--------+--------|
          | » |  Automatic configuration by system   |  Open  |  Open  |
          |   |            BIOS selected             |        |        |
          |---+--------------------------------------+--------+--------|
          |   |                C8000h                | Closed |  Open  |
          |---+--------------------------------------+--------+--------|
          |   |                D8000h                |  Open  | Closed |
          |---+--------------------------------------+--------+--------|
          |   |                DC000h                | Closed | Closed |
          +------------------------------------------------------------+
