       # PROLINK COMPUTER, INC.

          MVGA-AVGA4VL+

          Data bus:            32-bit VL-Bus
          Size:                Three/quarter-length, full-height card
          Hard drive           Two IDE (AT) interface drives
          supported:
          Floppy drives        Two 360KB, 720KB, 1.2MB, or 1.44MB drives
          supported:

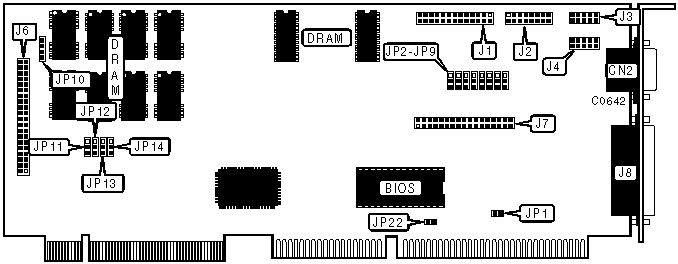

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                 Function                 |    Location     |
          |------------------------------------------+-----------------|
          | 15-pin analog video port - external      |       CN2       |
          |------------------------------------------+-----------------|
          | 26-pin connector - VGA feature connector |       J1        |
          |------------------------------------------+-----------------|
          | 16-pin game port - internal              |       J2        |
          |------------------------------------------+-----------------|
          | 10-pin serial port 1 - internal          |       J3        |
          |------------------------------------------+-----------------|
          | 10-pin serial port 2 - internal          |       J4        |
          |------------------------------------------+-----------------|
          | 40-pin IDE (AT) interface connector      |       J6        |
          |------------------------------------------+-----------------|
          | 34-pin cable connector - floppy drive    |       J7        |
          |------------------------------------------+-----------------|
          | 25-pin parallel port - external          |       J8        |
          |------------------------------------------+-----------------|
          | 4-pin connector - drive active LED       |      JP10       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |            Function             |    Location    | Setting |
          |---------------------------------+----------------+---------|
          | » | IRQ9 enabled                |      JP1       | closed  |
          |---+-----------------------------+----------------+---------|
          | » | IRQ9 disabled               |      JP1       |  open   |
          |---+-----------------------------+----------------+---------|
          | » | Parallel port enabled       | JP2/pins 1 & 2 | closed  |
          |---+-----------------------------+----------------+---------|
          | » | Parallel port disabled      | JP2/pins 2 & 3 | closed  |
          |---+-----------------------------+----------------+---------|
          | » | Floppy controller enabled   | JP3/pins 1 & 2 | closed  |
          |---+-----------------------------+----------------+---------|
          | » | Floppy controller disabled  | JP3/pins 2 & 3 | closed  |
          |---+-----------------------------+----------------+---------|
          | » | Parallel port is LPT2       | JP4/pins 1 & 2 | closed  |
          |---+-----------------------------+----------------+---------|
          | » | Parallel port is LPT3       | JP4/pins 2 & 3 | closed  |
          |---+-----------------------------+----------------+---------|
          | » | Game port enabled           | JP5/pins 1 & 2 | closed  |
          |---+-----------------------------+----------------+---------|
          | » | Game port disabled          | JP5/pins 2 & 3 | closed  |
          |---+-----------------------------+----------------+---------|
          | » | IDE (AT) interface enabled  | JP14/pins 1 &  | closed  |
          |   |                             |       2        |         |
          |---+-----------------------------+----------------+---------|
          | » | IDE (AT) interface disabled | JP14/pins 2 &  | closed  |
          |   |                             |       3        |         |
          |---+-----------------------------+----------------+---------|
          | » | IOCHRDY disabled            |      JP22      |  open   |
          |---+-----------------------------+----------------+---------|
          | » | IOCHRDY enabled             |      JP22      | closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                SERIAL PORT 1 CONFIGURATION                 |
          |------------------------------------------------------------|
          |      » COM       |        JP6         |        JP7         |
          |------------------+--------------------+--------------------|
          | » |     COM1     | pins 1 & 2 closed  | pins 1 & 2 closed  |
          |---+--------------+--------------------+--------------------|
          | » |     COM3     | pins 1 & 2 closed  | pins 2 & 3 closed  |
          |---+--------------+--------------------+--------------------|
          | » |   Disabled   | pins 2 & 3 closed  |        N/A         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                SERIAL PORT 2 CONFIGURATION                 |
          |------------------------------------------------------------|
          |     » COM      |         JP8         |         JP9         |
          |----------------+---------------------+---------------------|
          | » |    COM2    |  pins 1 & 2 closed  |  pins 1 & 2 closed  |
          |---+------------+---------------------+---------------------|
          | » |    COM4    |  pins 1 & 2 closed  |  pins 2 & 3 closed  |
          |---+------------+---------------------+---------------------|
          | » |  Disabled  |  pins 2 & 3 closed  |         N/A         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 HDD ACCESS TIME SELECTION                  |
          |------------------------------------------------------------|
          |   » Speed     |        JP11         |         JP12         |
          |---------------+---------------------+----------------------|
          | » |   600ns   |  pins 2 & 3 closed  |  pins 2 & 3 closed   |
          |---+-----------+---------------------+----------------------|
          | » |   240ns   |  pins 1 & 2 closed  |  pins 1 & 2 closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  VESA BUS CLOCK SELECTION                  |
          |------------------------------------------------------------|
          |         » Setting          |             JP13              |
          |----------------------------+-------------------------------|
          | » |         50MHz          |       pins 1 & 2 closed       |
          |---+------------------------+-------------------------------|
          | » |         33MHz          |       pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                MISCELLANEOUS TECHNICAL NOTE                |
          |------------------------------------------------------------|
          | DRAM is 2MB of high speed video memory installed.          |
          +------------------------------------------------------------+
