       # RANCHO TECHNOLOGY, INC.

          RT1000-MC

          Data bus: 16-bit, MCA

          Size: Full-length card

          Hard drives supported:  Up to seven SCSI devices

          Floppy drives supported: None

 (IMG) IMG 1


          +------------------------------------------------------------+

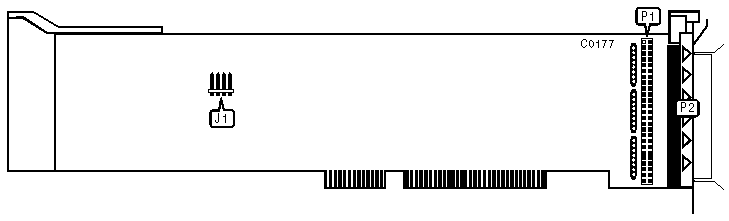

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                Function                 |     Location     |
          |-----------------------------------------+------------------|
          | 4-pin connector-DC power                |        J1        |
          |-----------------------------------------+------------------|
          | 50-pin SCSI connector-internal          |        P1        |
          |-----------------------------------------+------------------|
          | 50-pin SCSI connector-external          |        P2        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               MISCELLANEOUS TECHNICAL NOTES                |
          |------------------------------------------------------------|
          | There are no jumpers on the RT1000-MC. All configuration   |
          | is done through the use of the firmware.                   |
          +------------------------------------------------------------+
