          DRIVECACHE DC2032

          +------------------------------------------------------------+
          +------------------------------------------------------------+

          Data bus: 16-bit, ISA

          Size: Full-length, full-height card

          Hard drives supported: Four IDE(AT) drives

          Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB

          One floppy tape drive

          Maximum heads/cyl.: 16 heads and 2048 cylinders

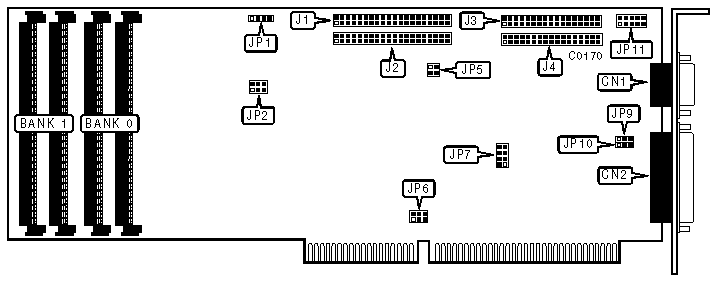

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                    Function                     | Location |
          |-------------------------------------------------+----------|
          | 9-pin serial port (COM1/3)-external             |   CN1    |
          |-------------------------------------------------+----------|
          | 25-pin parallel port (LPT1/2)-external          |   CN2    |
          |-------------------------------------------------+----------|
          | 40-pin IDE(AT) control cable connector-hard     |    J1    |
          | drive 0 and 1                                   |          |
          |-------------------------------------------------+----------|
          | 40-pin IDE(AT) control cable connector-hard     |    J2    |
          | drive 2 and 3                                   |          |
          |-------------------------------------------------+----------|
          | 34-pin control cable connector-floppy drive     |    J3    |
          |-------------------------------------------------+----------|
          | 34-pin control cable connector-floppy tape      |    J4    |
          | drive                                           |          |
          |-------------------------------------------------+----------|
          | 4-pin connector-drive active LED                |   JP1    |
          |-------------------------------------------------+----------|
          | 9-pin serial port (COM2/4)-internal             |   JP11   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              | Location |  Setting   |
          |------------------------------------+----------+------------|
          | » | Floppy drive enabled           |   JP9    | pins 1 & 2 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Floppy drive disabled          |   JP9    | pins 2 & 3 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Parallel port (CN12) set to    |   JP10   | pins 2 & 3 |
          |   | LPT1                           |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Parallel port (CN12) set to    |   JP10   | pins 1 & 2 |
          |   | LPT2                           |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Parallel port disabled         |   JP10   |    open    |
          +------------------------------------------------------------+

          +--------------------------------------------------------------+
          |                      INTERRUPT REQUEST                       |
          |--------------------------------------------------------------|
          |  IRQ  |JP2/jumper|JP2/jumper|JP3/jumper|JP3/jumper|JP3/jumper|
          |       |    2     |    3     |    1     |    2     |    3     |
          |-------+----------+----------+----------+----------+----------|
          | |IRQ12|  closed  |   open   |  closed  |   open   |   open   |
          |-+-----+----------+----------+----------+----------+----------|
          |»|IRQ14|   open   |   open   |   open   |  closed  |   open   |
          |-+-----+----------+----------+----------+----------+----------|
          | |IRQ15|   open   |  closed  |   open   |   open   |  closed  |
          |--------------------------------------------------------------|
          |Note:JP2/1, JP2/4 and JP3/4 are Not used and should not be    |
          |altered.                                                      |
          +--------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 SERIAL PORT CONFIGURATION                  |
          |------------------------------------------------------------|
          |      CN10      |    CN11     | JP5/jumper 1 | JP5/jumper 2 |
          |   (external)   | (internal)  |              |              |
          |----------------+-------------+--------------+--------------|
          |      COM1      |    COM2     |     open     |     open     |
          |----------------+-------------+--------------+--------------|
          |      COM3      |    COM2     |    closed    |     open     |
          |----------------+-------------+--------------+--------------|
          |      COM1      |    COM4     |     open     |    closed    |
          |----------------+-------------+--------------+--------------|
          |      COM3      |    COM4     |    closed    |    closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                        BIOS ADDRESS                        |
          |------------------------------------------------------------|
          |Address |JP7/jumper 1|JP7/jumper 2|JP7/jumper 3|JP7/jumper 4|
          |--------+------------+------------+------------+------------|
          | |C800h |   closed   |    open    |   closed   |   closed   |
          |-+------+------------+------------+------------+------------|
          | |CA00h |   closed   |    open    |   closed   |    open    |
          |-+------+------------+------------+------------+------------|
          | |CC00h |   closed   |    open    |    open    |   closed   |
          |-+------+------------+------------+------------+------------|
          | |CE00h |   closed   |    open    |    open    |    open    |
          |-+------+------------+------------+------------+------------|
          | |D000h |    open    |   closed   |   closed   |   closed   |
          |-+------+------------+------------+------------+------------|
          | |D200h |    open    |   closed   |   closed   |    open    |
          |-+------+------------+------------+------------+------------|
          | |D400h |    open    |   closed   |    open    |   closed   |
          |-+------+------------+------------+------------+------------|
          | |D600h |    open    |   closed   |    open    |    open    |
          |-+------+------------+------------+------------+------------|
          |»|D800h |    open    |    open    |   closed   |   closed   |
          |-+------+------------+------------+------------+------------|
          | |DA00h |    open    |    open    |   closed   |    open    |
          |-+------+------------+------------+------------+------------|
          | |DC00h |    open    |    open    |    open    |   closed   |
          |-+------+------------+------------+------------+------------|
          | |DE00h |    open    |    open    |    open    |    open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                ON-BOARD CACHE CONFIGURATION                |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       512k       |    (2) 256K x 9    |        NONE        |
          |------------------+--------------------+--------------------|
          |        1M        |    (2) 256K x 9    |    (2) 256K x 9    |
          |------------------+--------------------+--------------------|
          |        2M        |     (2) 1M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       2.5M       |    (2) 256K x 9    |     (2) 1M x 9     |
          |------------------+--------------------+--------------------|
          |        4M        |     (2) 1M x 9     |     (2) 1M x 9     |
          |------------------+--------------------+--------------------|
          |        8M        |     (2) 4M x 9     |        NONE        |
          |------------------+--------------------+--------------------|
          |       8.5M       |    (2) 256K x 9    |     (2) 4M x 9     |
          |------------------+--------------------+--------------------|
          |       10M        |    (2) 256K x 9    |     (2) 4M x 9     |
          |------------------+--------------------+--------------------|
          |       16M        |     (2) 4M x 9     |     (2) 4M x 9     |
          +------------------------------------------------------------+
