       # MYLEX CORPORATION

          BT-930

          Card Type               Hard drive controller card
          Hard Drives supported   Up to 7 SCSI devices
          Floppy drives supported None
          Data Bus                32-bit PCI
          Card Size               Half-length, half-height card

 (IMG) IMG 1


          +------------------------------------------------------------+

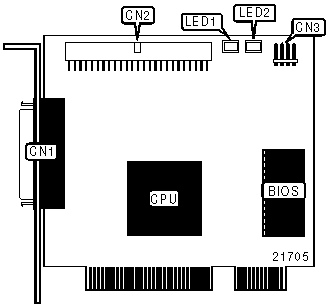

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |  Function   | Location |        Function        | Location |
          |-------------+----------+------------------------+----------|
          | 50-pin SCSI |   CN1    | 4-pin connector -      |   CN3    |
          | connector - |          | drive active LED       |          |
          | external    |          |                        |          |
          |-------------+----------+------------------------+----------|
          | 50-pin SCSI |   CN2    |                        |          |
          | connector - |          |                        |          |
          | internal    |          |                        |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | Note: The function of the LED’s is unidentified.           |
          +------------------------------------------------------------+
