       # NCL AMERICA

          NCL 5125

          +------------------------------------------------------------+
          +------------------------------------------------------------+

          Data bus: 16-bit, ISA

          Size: Full-length, full-height card

          Hard Drives Supported: Two ST506/412 drives

          Floppy Drives Supported: Two 320KB, 720KB, 1.2 MB or 1.44 MB
          drives

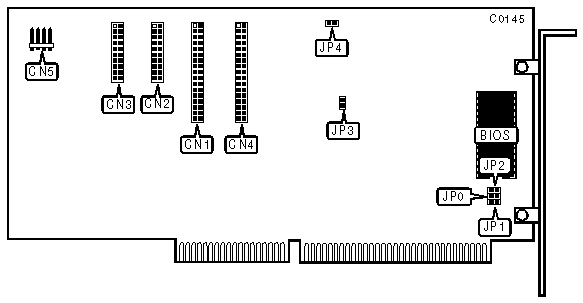

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                   Function                   |  Location   |
          |----------------------------------------------+-------------|
          | 34-pin control cable connector-hard drive    |     CN1     |
          |----------------------------------------------+-------------|
          | 20-pin data cable connector-drive 0          |     CN2     |
          |----------------------------------------------+-------------|
          | 20-pin data cable connector-drive 1          |     CN3     |
          |----------------------------------------------+-------------|
          | 34-pin data cable connector-floppy drive     |     CN4     |
          |----------------------------------------------+-------------|
          | 4-pin connector-drive active LED             |     CN5     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              |  Location   | Setting |
          |------------------------------------+-------------+---------|
          | » | Hard drive port address is     |     JP0     |  open   |
          |   | 1F0-1F7h                       |             |         |
          |---+--------------------------------+-------------+---------|
          |   | Hard drive port address is     |     JP0     | closed  |
          |   | 170-177h                       |             |         |
          |---+--------------------------------+-------------+---------|
          | » | Floppy drive port address is   |     JP1     |  open   |
          |   | 3F2-3F7h                       |             |         |
          |---+--------------------------------+-------------+---------|
          |   | Floppy drive port address is   |     JP1     | closed  |
          |   | 372-177h                       |             |         |
          |---+--------------------------------+-------------+---------|
          | » | Factory configured - do not    | JP2, JP3, & | closed  |
          |   | alter                          |     JP4     |         |
          +------------------------------------------------------------+
