       # KOUWELL ELECTRONICS CORPORATION

          KW-554N

          Data Bus             16-bit ISA
          Card Size            Half-length, half-height card
          Hard Drives          Two IDE (AT) drives
          supported
          Floppy drives        Two 360KB, 720KB, 1.2MB, or 1.44MB drives
          supported

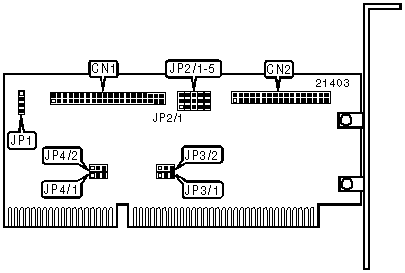

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function      | Location |    Function     | Location |
          |--------------------+----------+-----------------+----------|
          | 40-pin IDE(AT)     |   CN1    | 4-pin connector |   JP1    |
          | connector          |          | - drive active  |          |
          |                    |          | LED             |          |
          |--------------------+----------+-----------------+----------|
          | 34-pin cable       |   CN2    |                 |          |
          | connector - floppy |          |                 |          |
          | drive              |          |                 |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                USER CONFIGURABLE SETTINGS                  |
          |------------------------------------------------------------|
          |                Function                | Label | Position  |
          |----------------------------------------+-------+-----------|
          | » | Floppy drive order is normal (A:,  | JP2/1 | Pins 1 &  |
          |   | B:)                                |       | 2 closed  |
          |---+------------------------------------+-------+-----------|
          |   | Floppy drive order is reversed     | JP2/1 | Pins 2 &  |
          |   | (B:, A:)                           |       | 3 closed  |
          |---+------------------------------------+-------+-----------|
          | » | Floppy drive primary address is    | JP2/2 | Pins 2 &  |
          |   | 3F0h                               |       | 3 closed  |
          |---+------------------------------------+-------+-----------|
          |   | Floppy drive secondary address is  | JP2/2 | Pins 1 &  |
          |   | 170h                               |       | 2 closed  |
          |---+------------------------------------+-------+-----------|
          | » | Floppy drive interface enabled     | JP2/3 | Pins 1 &  |
          |   |                                    |       | 2 closed  |
          |---+------------------------------------+-------+-----------|
          |   | Floppy drive interface disabled    | JP2/3 | Pins 2 &  |
          |   |                                    |       | 3 closed  |
          |---+------------------------------------+-------+-----------|
          | » | IDE primary address is 1F0h        | JP2/4 | Pins 2 &  |
          |   |                                    |       | 3 closed  |
          |---+------------------------------------+-------+-----------|
          |   | IDE secondary address is 170h      | JP2/4 | Pins 1 &  |
          |   |                                    |       | 2 closed  |
          |---+------------------------------------+-------+-----------|
          | » | IDE(AT) interface enabled          | JP2/5 | Pins 1 &  |
          |   |                                    |       | 2 closed  |
          |---+------------------------------------+-------+-----------|
          |   | IDE(AT) interface disabled         | JP2/5 | Pins 2 &  |
          |   |                                    |       | 3 closed  |
          |---+------------------------------------+-------+-----------|
          | » | Floppy drive IRQ 6 select          | JP4/1 | Pins 1 &  |
          |   |                                    |       | 2 closed  |
          |---+------------------------------------+-------+-----------|
          |   | Floppy drive IRQ 10 select         | JP4/1 | Pins 2 &  |
          |   |                                    |       | 3 closed  |
          |---+------------------------------------+-------+-----------|
          | » | IDE(AT) IRQ 14 select              | JP4/2 | Pins 1 &  |
          |   |                                    |       | 2 closed  |
          |---+------------------------------------+-------+-----------|
          |   | IDE(AT) IRQ 15 select              | JP4/2 | Pins 2 &  |
          |   |                                    |       | 3 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   DMA CHANNEL SELECTION                    |
          |------------------------------------------------------------|
          |     Channel      |       JP3/1        |       JP3/2        |
          |------------------+--------------------+--------------------|
          | »  |      2      | Pins 1 & 2 closed  | Pins 1 & 2 closed  |
          |----+-------------+--------------------+--------------------|
          |    |      3      | Pins 2 & 3 closed  | Pins 2 & 3 closed  |
          +------------------------------------------------------------+
