       # INITIO CORPORATION

          INI-9100W

          +------------------------------------------------------------+
          |------------------------------------------------------------|
          | Data bus:                | 32-bit PCI                      |
          |--------------------------+---------------------------------|
          | Size:                    | Half-length, full-height card   |
          |--------------------------+---------------------------------|
          | Hard drive supported:    | Up to seven SCSI drives         |
          |--------------------------+---------------------------------|
          | Floppy drives supported: | None                            |
          +------------------------------------------------------------+

 (IMG) IMG 1


          +------------------------------------------------------------+

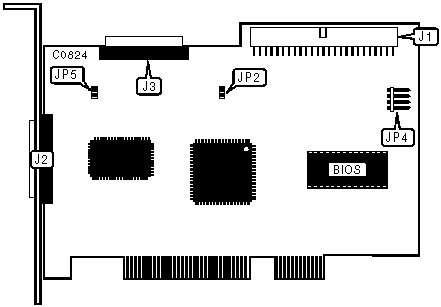

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                Function                |     Location      |
          |----------------------------------------+-------------------|
          | 50-pin SCSI connector - internal       |        J1         |
          |----------------------------------------+-------------------|
          | 68-pin SCSI connector - external       |        J2         |
          |----------------------------------------+-------------------|
          | 68-pin SCSI connector - internal       |        J3         |
          |----------------------------------------+-------------------|
          | 4-pin connector - drive active LED     |        JP4        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function                | Location | Setting |
          |---------------------------------------+----------+---------|
          | » | Active onboard termination (Low)  |   JP2    |  open   |
          |   | disabled                          |          |         |
          |---+-----------------------------------+----------+---------|
          |   | Active onboard termination (Low)  |   JP2    | closed  |
          |   | enabled                           |          |         |
          |---+-----------------------------------+----------+---------|
          | » | Active onboard termination (High) |   JP5    |  open   |
          |   | disabled                          |          |         |
          |---+-----------------------------------+----------+---------|
          |   | Active onboard termination (High) |   JP5    | closed  |
          |   | enabled                           |          |         |
          +------------------------------------------------------------+
