       # LONGSHINE MICROSYSTEM, INC.

          LCS-6623 REV. N1

          +------------------------------------------------------------+
          |------------------------------------------------------------|
          | Data bus:         | 16-bit, ISA                            |
          |-------------------+----------------------------------------|
          | Size:             | Half-length, full-height card          |
          |-------------------+----------------------------------------|
          | Hard drive        | Two IDE (AT) Interface drives          |
          | supported:        |                                        |
          |-------------------+----------------------------------------|
          | Floppy drives     | Two 360KB, 720KB, 1.2MB, or 1.44MB     |
          | supported:        | drives                                 |
          +------------------------------------------------------------+

 (IMG) IMG 1


          +------------------------------------------------------------+

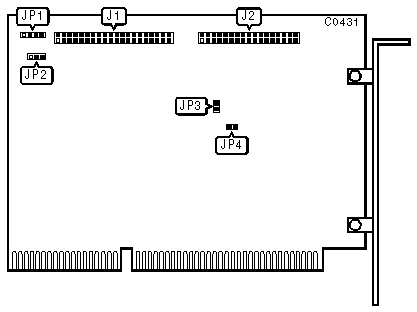

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                  Function                   |   Location   |
          |---------------------------------------------+--------------|
          | 40-pin AT Interface (IDE) connector         |      J1      |
          |---------------------------------------------+--------------|
          | 34-pin control cable connector-floppy drive |      J2      |
          |---------------------------------------------+--------------|
          | 4-pin connector-Drive active LED            |     JP1      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              | Location |  Setting   |
          |------------------------------------+----------+------------|
          | » | IRQ connected directly to host |   JP2    | pins 2 & 3 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | IRQ Buffer mode enabled        |   JP2    | pins 1 & 2 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Zero wait state disabled       |   JP3    |    open    |
          |---+--------------------------------+----------+------------|
          |   | Zero wait state enabled        |   JP3    |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Floppy drive enabled           |   JP4    |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Floppy drive disabled          |   JP4    |    open    |
          +------------------------------------------------------------+
