       # LONGSHINE MICROSYSTEM, INC.

          LCS-6210D/W

          +------------------------------------------------------------+
          +------------------------------------------------------------+

          Data bus: 8-bit, ISA

          Size: Half-length, full-height card

          Hard drives supported:  Two ST506/412 MFM drives

          Floppy drives supported: None

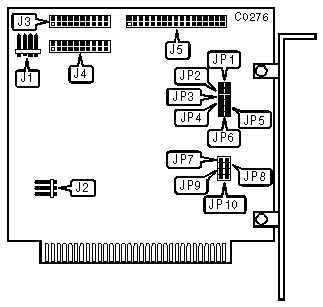

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                     CABLE CONNECTIONS                      |
          |------------------------------------------------------------|
          |                   Function                   |  Location   |
          |----------------------------------------------+-------------|
          | 4-pin connector-drive active LED             |     J1      |
          |----------------------------------------------+-------------|
          | 5-pin connector-DC power                     |     J2      |
          |----------------------------------------------+-------------|
          | 20-pin data cable connector-drive 0          |     J3      |
          |----------------------------------------------+-------------|
          | 20-pin data cable connector-drive 1          |     J4      |
          |----------------------------------------------+-------------|
          | 34-pin control cable connector-hard drives   |     J5      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Location  | Setting |
          |--------------------------------------+-----------+---------|
          | » | Factory configured--do not alter |    JP7    |  open   |
          |---+----------------------------------+-----------+---------|
          | » | Factory configured--do not alter |    JP8    |  open   |
          |---+----------------------------------+-----------+---------|
          | » | Interrupt Request is IRQ5        |    JP9    |  open   |
          |---+----------------------------------+-----------+---------|
          |   | Interrupt Request is IRQ2        |    JP9    | closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    DRIVE SELECT JUMPERS                    |
          |------------------------------------------------------------|
          | Cap. (Hds. x Cyls. |  JP1 -  |  JP2 -  |  JP3 -  |  JP4 -  |
          |       x SPT)       |  Drv 0  |  Drv 0  |  Drv 1  |  Drv 1  |
          |--------------------+---------+---------+---------+---------|
          | »   |     21MB     | closed  | closed  | closed  | closed  |
          |     |  (4x612x17)  |         |         |         |         |
          |-----+--------------+---------+---------+---------+---------|
          |     |     10MB     |  open   | closed  |  open   | closed  |
          |     |  (4x306x17)  |         |         |         |         |
          |-----+--------------+---------+---------+---------+---------|
          |     |     10MB     | closed  |  open   | closed  |  open   |
          |     |  (2x615x17)  |         |         |         |         |
          |-----+--------------+---------+---------+---------+---------|
          |     |     21MB     |  open   |  open   |  open   |  open   |
          |     |  (4x615x17)  |         |         |         |         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               BIOS AND PORT ADDRESS JUMPERS                |
          |------------------------------------------------------------|
          |     Address      | Port address  |     JP5     |    JP6    |
          |------------------+---------------+-------------+-----------|
          | » |    C8000h    |   320-323h    |    open     |   open    |
          |---+--------------+---------------+-------------+-----------|
          |   |    CA000h    |   324-327h    |   closed    |   open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               MISCELLANEOUS TECHNICAL NOTES                |
          |------------------------------------------------------------|
          |  To allow system to be XT compatable, jumper JP10 must be  |
          |                           open.                            |
          +------------------------------------------------------------+
