       # LONGSHINE MICROSYSTEM, INC.

          LCS 6623/W

          Data bus: 16-bit, ISA

          Size: Full-length, half-height card

          Hard drives supported:  Two IDE (AT) Interface drive

          Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB.

 (IMG) IMG 1


          +------------------------------------------------------------+

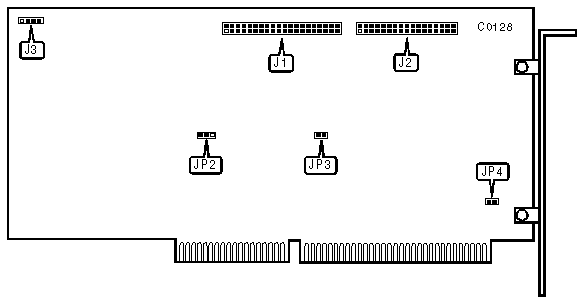

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                   Function                   |  Location   |
          |----------------------------------------------+-------------|
          | 40-pin Interface IDE (AT) connector-internal |     J1      |
          |----------------------------------------------+-------------|
          | 34-pin data cable connector-floppy drive     |     J2      |
          |----------------------------------------------+-------------|
          | 4-pin connector-drive active LED             |     J3      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              | Location |  Setting   |
          |------------------------------------+----------+------------|
          | » | Normal Interrupt timing        |   JP2    | pins 1 & 2 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Delayed interrupt timing       |   JP2    | pins 2 & 3 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Factory configured- do not     |   JP3    |  unknown   |
          |   | alter                          |          |            |
          |---+--------------------------------+----------+------------|
          | » | LCS-6623W not grounded to host |   JP4    |    open    |
          |---+--------------------------------+----------+------------|
          |   | LCS-6623W grounded to host     |   JP4    |   closed   |
          +------------------------------------------------------------+
