       # ELITEGROUP COMPUTER SYSTEMS, INC.

          DI-602

          +------------------------------------------------------------+
          |------------------------------------------------------------|
          | Data bus:         | 32-bit, VL-Bus                         |
          |-------------------+----------------------------------------|
          | Size:             | Three/quarter-length, half-height card |
          |-------------------+----------------------------------------|
          | Hard drive        | Two IDE (AT) Interface drives          |
          | supported:        |                                        |
          |-------------------+----------------------------------------|
          | Floppy drives     | Two 360KB, 720KB, 1.2MB, or 1.44MB     |
          | supported:        | drives                                 |
          +------------------------------------------------------------+

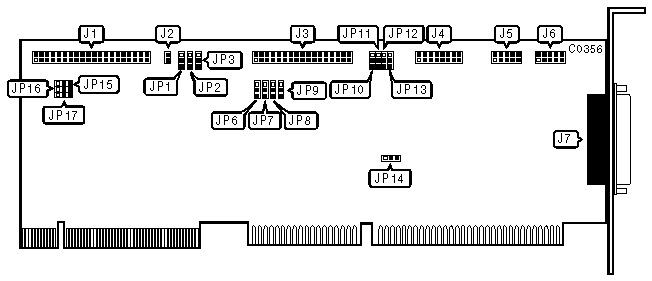

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                   Function                    |  Location  |
          |-----------------------------------------------+------------|
          | 40-pin IDE(AT) Interface connector            |     J1     |
          |-----------------------------------------------+------------|
          | 2-pin connector - Drive active LED            |     J2     |
          |-----------------------------------------------+------------|
          | 34-pin control cable connector - floppy drive |     J3     |
          |-----------------------------------------------+------------|
          | 15-pin game port - internal                   |     J4     |
          |-----------------------------------------------+------------|
          | 10-pin serial port (COM1/3) - internal        |     J5     |
          |-----------------------------------------------+------------|
          | 10-pin serial port (COM2/4) - internal        |     J6     |
          |-----------------------------------------------+------------|
          | 25-pin parallel port (LPT2/3) - external      |     J7     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function              | Location |  Setting   |
          |------------------------------------+----------+------------|
          | » | Floppy drive enabled           |   JP6    | pins 1 & 2 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Floppy drive disabled          |   JP6    | pins 2 & 3 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Game Port (J4) enabled         |   JP7    | pins 1 & 2 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Game Port (J4) disabled        |   JP7    | pins 2 & 3 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Parallel port (J7) is set to   |   JP8    | pins 1 & 2 |
          |   | LPT2                           |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Parallel port (J7) is set to   |   JP8    | pins 2 & 3 |
          |   | LPT3                           |          |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Parallel port (J7) enabled     |   JP9    | pins 1 & 2 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Parallel port (J7) disabled    |   JP9    | pins 2 & 3 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Serial Port 2 (J6) enabled     |   JP10   | pins 1 & 2 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Serial Port 2 (J6 disabled     |   JP10   | pins 2 & 3 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Serial Port 2 (J6) is set to   |   JP11   | pins 1 & 2 |
          |   | COM2                           |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Serial Port 2 (J6) is set to   |   JP11   | pins 2 & 3 |
          |   | COM4                           |          |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Serial Port 1 (J5) is set to   |   JP12   | pins 1 & 2 |
          |   | COM1                           |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Serial Port 1 (J5) is set to   |   JP12   | pins 2 & 3 |
          |   | COM3                           |          |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Serial Port 1 (J5) enabled     |   JP13   | pins 1 & 2 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Serial Port 1 (J5) disabled    |   JP13   | pins 2 & 3 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Parallel port (J7) interrupt   |   JP14   | pins 1 & 2 |
          |   | is IRQ7                        |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Parallel port (J7) interrupt   |   JP14   | pins 2 & 3 |
          |   | is IRQ5                        |          |   closed   |
          |---+--------------------------------+----------+------------|
          | » | Hard drive enabled             |   JP17   | pins 1 & 2 |
          |   |                                |          |   closed   |
          |---+--------------------------------+----------+------------|
          |   | Hard drive disabled            |   JP17   | pins 2 & 3 |
          |   |                                |          |   closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  I/O PORT ADDRESS SELECT                   |
          |------------------------------------------------------------|
          |     Address      |     Jumper JP3     |    Jumper JP16     |
          |------------------+--------------------+--------------------|
          |     26h/27h      | pins 1 & 2 closed  | pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |     2Ah/2Bh      | pins 2 & 3 closed  | pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |     2Eh/2Fh      | pins 1 & 2 closed  | pins 1 & 2 closed  |
          |------------------+--------------------+--------------------|
          |     34h/35h      | pins 2 & 3 closed  | pins 1 & 2 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               MISCELLANEOUS TECHNICAL NOTES                |
          |------------------------------------------------------------|
          | Jumpers JP1, JP2 and JP15 are factory configured to pins 1 |
          |                 & 2 closed, do not alter.                  |
          +------------------------------------------------------------+
