       # ADVANCED LOGIC RESEARCH, INC.

          R66

          +------------------------------------------------------------+
          |------------------------------------------------------------|
          | Data bus:         | 16-bit ISA                             |
          |-------------------+----------------------------------------|
          | Size:             | Three-quarter length, full-height card |
          |-------------------+----------------------------------------|
          | Hard drive        | Two RLL ST412/506 drives               |
          | supported:        |                                        |
          |-------------------+----------------------------------------|
          | Floppy drives     | None                                   |
          | supported:        |                                        |
          +------------------------------------------------------------+

 (IMG) IMG 1


          +------------------------------------------------------------+

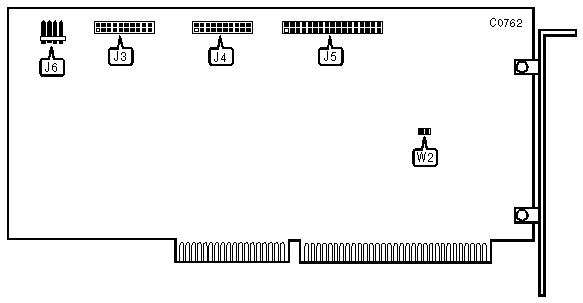

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |                  Function                   |   Location   |
          |---------------------------------------------+--------------|
          | 20-pin data cable connector - drive 1       |      J3      |
          |---------------------------------------------+--------------|
          | 20-pin data cable connector - drive 0       |      J4      |
          |---------------------------------------------+--------------|
          | 34-pin control cable connector - hard drive |      J5      |
          |---------------------------------------------+--------------|
          | 4-pin connector - drive active LED          |      J6      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |             Function             |  Location   |  Setting  |
          |----------------------------------+-------------+-----------|
          | » | BIOS enabled                 |     W2      |   open    |
          |---+------------------------------+-------------+-----------|
          |   | BIOS disabled                |     W2      |  closed   |
          +------------------------------------------------------------+
